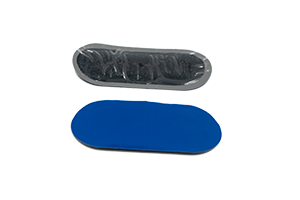

R9020-3 RFID Tire Tag
Speedingiot R9020-3 RFID Tire Tag is designed for finished tire tracking, featuring a unique ID code for anti-theft and anti-cloning. It lasts the entire tire lifespan, installed on the tire's inner sidewall via vulcanizing agent, mainly for buses, trucks, and trailers, etc.
Dimension 95x35x2mm
Material Rubber
Chip NXP Ucode 8
EPC 128 bits TID 96 bits User 0 bits
Standard EPC C1G2 (ISO18000-6C)
Reading Distance (2W ERP): 11m in Air; 8.0m on Rubber
Reading Distance (Handheld): 8.5m in Air; 5.0m on Rubber
Data Storage: >10 Years
The number of erasable 100000 times
Installation Method: Vulcanizing Agent Installation (Patch-like)
Technical Parameters
Technical parameters
| Dimensions | 95x35x2mm |
|---|---|
| Material | Rubber |
| Color | blue |
| Weight | 5g |
| Chip Memory | EPC 128 bits TID 96 bits User 0 bits |
| Application Surface | Inner Tire Sidewall |
| Reading Distance (2W ERP) | 11m in Air; 8.0m on Rubber |
| Reading Distance (Handheld) | 8.5m in Air; 5.0m on Rubber |
| Chip | NXP Ucode 8 |
| Data retention time | > 10 years |
| Data rewriting times | > 100,000 times |
Other parameters
| Working temperature | -40~+85℃ |
|---|---|
| Storage temperature | -40~+230℃ |
| Installation method | Vulcanizing Agent Installation (Patch-like) |
| Customized content | Serial number, code writing, antenna design, etc. |
| Application Scenarios | Tire Brand Management, Tire Asset Management, Automated Tire Production Management, Logistics Vehicle Management, etc. |
