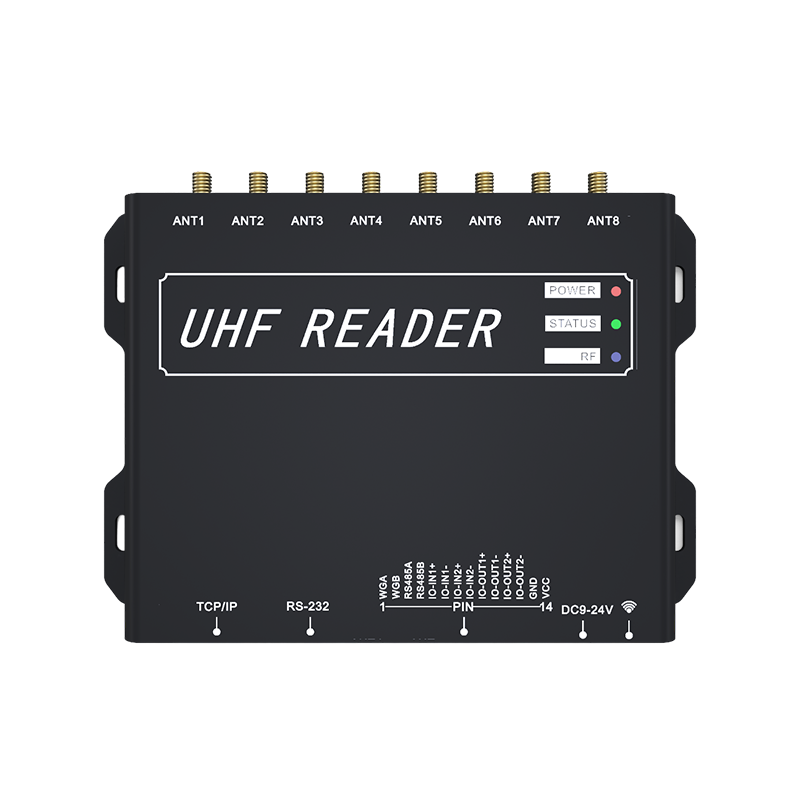

S-F430 UHF fixed reader
F430 is a fixed eight channel reader/writer developed based on the Linux system. Adopting lmpinj E710 high-performance RFID chip; Support customized application development, can support POE power supply at maximum power: expandable Bluetooth, WiFi wireless transmission function: supports RJ-45/RS-232/RS-485/USB/Wiegand port multiple communication interfaces; Support remote configuration through the web to ensure efficient and stable mobile data collection for enterprise users. Widely used in various industries such as supermarket retail, logistics and warehousing, asset management, electricity, government&public utilities, etc.
Size: 241x132x36mm
Weight: 1.0Kg
Chip Impinj E710 Design Module
System support Windows, Android
Support TCP IP,RS232,USB, optional 4G /WiFi/Bluetooth
EPC C1 GEN2 / ISO18000-6C
Technical Parameters
Basic parameters
| Overall size | 241x132x36mm |
|---|---|
| Weight of whole machine | 1.42Kg |
| Power consumption | 25W |
| Antenna Interface | 8-way SMA type external antenna interface |
| Communication Interface | RS-232, USB, RS-485, RJ-45 |
| Power Supply | DC 24V/2.5A (DC 9V～30V，60W) |
RFID UHF
| Operating frequency | China 920-925 MHz; USA 902-928 MHz; Europe 865-868 MHz |
|---|---|
| Protocol Standards | EPC C1 GEN2 / ISO18000-6C |
| RFID Engine | Design of E710 Chip Based on Impinj |
| Power output | 0 ~ 33dBm adjustable, step interval ± 1dBm, |
| Acceptance sensitivity | -87 dBm |
| Group Read Rate | 900 tags/sec |
| Reader operating mode | Master-slave mode/stand-alone mode/trigger mode |
| GPIO | 4-way input, 4-way output |
| RSSI strength monitoring | Support |
| wireless communication | WIFI/4G/Bluetooth (optional) |
| Communication Protocol | RS-232, TCP/IP, HTTP/HTTPS, MQTT |
| Antenna | Support automatic detection/support multiple antennas, such as 6dBic,9dBic, etc |
Development Environment
| Development Language | C#, Java |
|---|---|
| Development Tools | Android, Windows, Web |
Use of the environment
| Working temperature | -20 ℃ to 70 ℃ |
|---|---|
| Storage temperature | -30 ℃ to 85 ℃ |
| Working humidity | 5% to 95% (non-condensing) |
Annex
| Standard accessories | Power adapter, certificate, etc. |
|---|---|
| Custom Accessories | Connection feeder and antenna selection (based on actual feeder length and suitable size antenna) |
