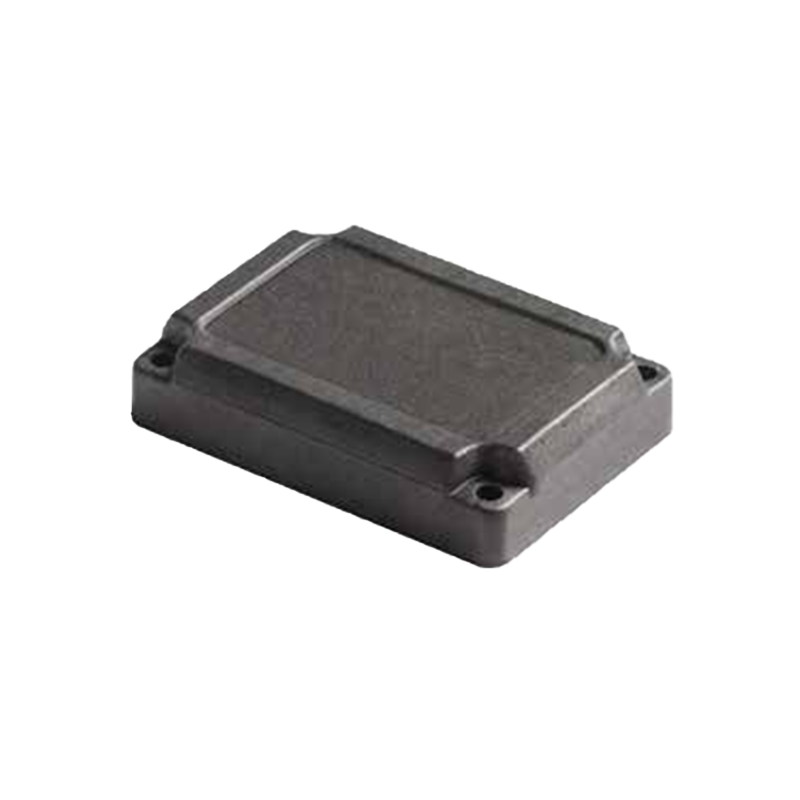

K4831 high temperature resistant metal electronic label

Fast wireless K4831 is a long-distance high temperature electronic tag, based on the development of R6P chip UHF RFID ceramic tag. The size is 31.5 x 48.5 x 10.3mm, which meets the EPC Class 1 Gen 2 standard. When it is fixed on the surface of a metal asset, the reading distance can reach more than 14 meters. High temperature resistant performance is strong, the maximum withstand temperature can reach 300 degrees, one-piece injection molding design makes it resistant to acid and alkali immersion, ultrasonic cleaning and other harsh environments, widely used in high temperature environment asset management, heavy asset management, smelting, extraction, spraying process, etc.
  • ※ physical parameters

    Dimensions 48.5 x 31.5 x 10.3mm
    Material PA6 + GF 30%

  • ※ chip specifications

    Chip Impinj R6-P
    EPC 128 bits TID 96 bits User 32 bits

  • ※ RFID performance

    Standard EPC C1G2 (ISO18000-6C)
    Reading distance (4W ERP)14.0 m, metal surface

  • ※ data acquisition

    Data storage> 10 years
    The number of erasable 100000 times
    Installation method Industrial grade adhesive, steel wire/tie strap, rivet

  • Technical Parameters

    RFID performance parameters

    MaterialPA6 + GF 30%
    Dimensions48.5 x 31.5 x 10.3mm
    Weight28 g
    ColorBlack
    StandardEPC C1G2 (ISO18000-6C)
    Frequency(US Standard) 902-928MHz,(European Standard) 865-868MHz
    ChipImpinj R6-P
    EPC memory128 bits
    TID96 bits
    USER32 bits
    Waterproof gradeIP68
    Read Distance (2W ERP)14 m, metal surface
    Data storage50 years
    Number of erasable100,000 times

    Other parameters

    Working temperature-30~85 ℃
    Storage temperature-30~300 ℃
    Operating humidity10%-95%
    Installation methodIndustrial grade adhesive, can be used with metal holder by wire tie, rivet
    Customized contentLogo, bar code/two-dimensional code, serial number, code writing, antenna design, etc.
    Product Application ScenariosAsset management in high temperature environment, heavy asset management, smelting, extraction, spraying process, etc.
