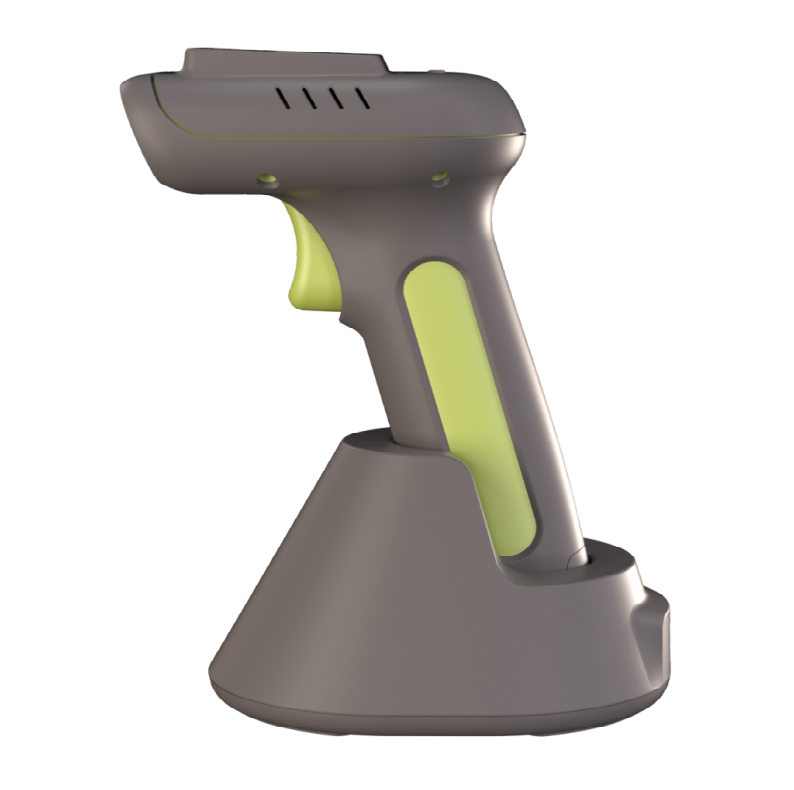

U2 Handheld RFID Scanner
U2 is an industrial handheld two-dimensional code and RFID wireless scanner, using 300000 pixels global exposure camera, with excellent reading performance, you can easily read paper, commodity, screen and other different media bar code. Integrated UHF RFID reading function, the reading is sensitive, accurate and fast, and the reading distance is greater than 30cm. The product adopts enhanced wireless 2.4G transmission technology, and the effective distance can reach more than 60 meters in outdoor open environment. It supports wireless Bluetooth communication mode, and the effective distance can reach more than 30 meters in outdoor open environment. Both wired and wireless transmission modes can be supported. It can be mainly used in express business, warehousing logistics, medical and health care, mobile payment, inventory inventory, etc.
Size 168.3 x 66 x 87.7mm
weight 244g
Standard EPC C1 GEN2 / ISO18000-6C
System Windows，Mac OS，IOS, Linux ,Android,
Support Bluetooth data communication
Interface Type-C Interface
RFID reading distance 0.1-0.3meters;
Communication 2.4G， Bluetooth (HID, SPP, BLE)
Technical Parameters
Basic parameters
| Overall size | Size 168.3 x 66 x 87.7mm weight 244g |
|---|---|
| Communication | 2.4G， Bluetooth (HID, SPP, BLE) |
| Shell | ABS PC |
| Color | Grey |
| Buzzer | Software configurable with buzzer |
| Communication Interface | Type-C |
| Indicator light | Power indicator, Bluetooth indicator, work indicator |
UHF Data acquisition
| Operating frequency | China 920-925 MHz; US 902-928 MHz; Europe 865-868 MHz |
|---|---|
| Protocol Standards | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C |
| Power output | 0.5W(13 ~ 27dBm) adjustable,± 1dBm |
| Receive Sensitivity | <-70dBm |
| Peak Speed | > 50 sheets per second |
| Card reading distance | 0.1-0.3 m, (test condition is related to tag type, transmission power and application environment) |
Related Functions
| System Support | Windows，Mac OS，IOS, Linux ,Android, |
|---|---|
| Transmit Distance | ≥60meters 2.4G; 30meters Bluetooth（Open distance） |
| Transmit Distance | 350KB（over 20,000 Product code） |
| Battery capacity | 5000mAh |
| Standby time | ≥10hours（Continuous） |
| Working time | 8 hours/equalization mode |
| Standby Time | ≥4 weeks |
| Power Input | DC 5V/1A |
Barcode
| Sensor | CMOS global shutter |
|---|---|
| Pixel | 300,000，640*480 |
| Reading Precision | ≥3mil/0.076mm（PCS90%,CODE 39） |
| TPIAL | Red line aim light |
| Depth of Field | 30mm~480mm（Different barcode range） |
| Decoding Speed | 65CM/S |
| Prompt Mode | LED、Buzzer、Vibrator |
| Perspective | 41° * 31° |
| Reading Angle | Roll: ±360°，Pitch:±60°，Skew: ±55° Test Conditions：CODE39,10mil/0.25mm,PCS90% |
| Code System | 1D：UPC-A，UPC-E，EAN-8，EAN-13，ISBN, ISSN, Code 128， GS1-128，ISBT, Code 39，Code 32, Code 93，Code 11,Codabar（NW-7），Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5），NEC 2of 5， MSI，Telepen, Trioptic， BC412, Febraban, Coupon. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Pharma Code(One-Track), Codablock A, Codablock F, Dot Code, Grid Matrix, etc. Other composite code：GS1 Databar(Omnidirectional, Limited, Expanded)，GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR, Passport OCR, etc. Postal code：HongKong 2 of 5(China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code |
Use of the environment
| Working temperature | 0 ℃ to 50 ℃ |
|---|---|
| Storage temperature | -30 ℃ to 60 ℃ |
| Ambient humidity | 5% to 95% (non-condensing) |
Support & Downloads
Product Manual
U2 Operation Video
2025-08-16
Product Specifications
U2 Specification EN
2025-08-16
