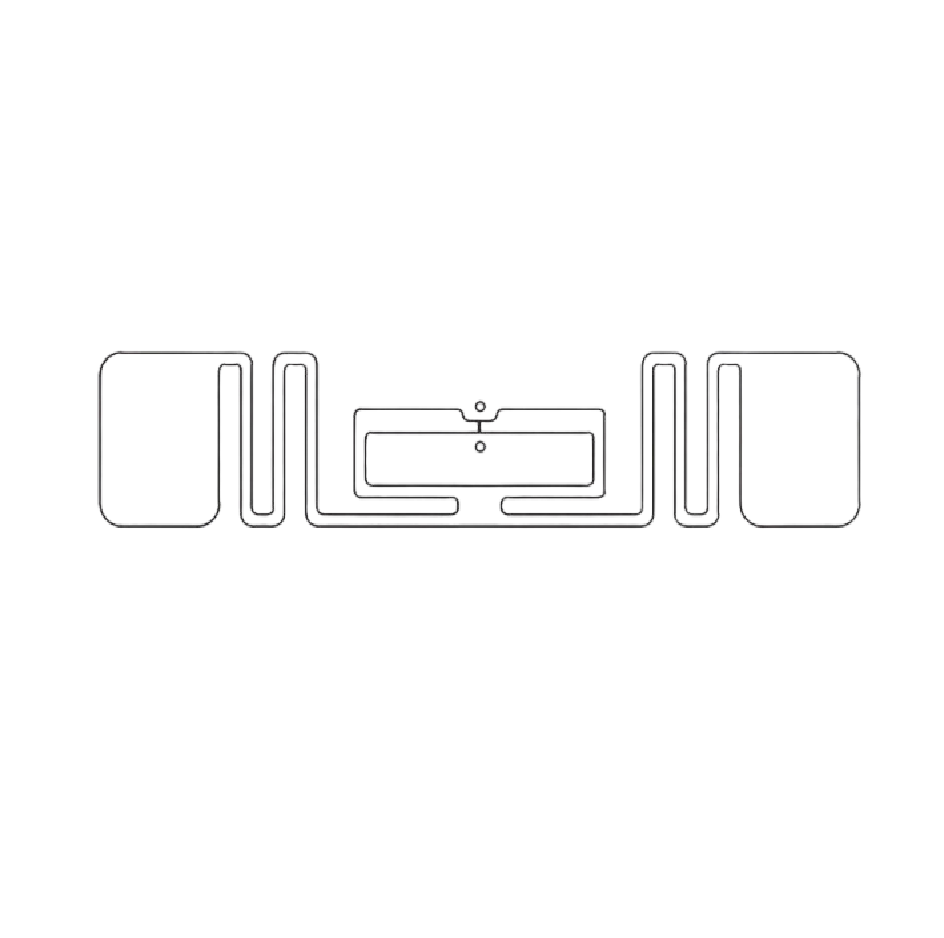

L7320 UHF Label
L7320 self-adhesive labels comply with the EPC C1G2 (ISO18000-6C) standard, with a working frequency of 860-960MHz. They are mainly used in logistics, retail, asset management, luggage management, etc.
Coated paper
EPC Global Class1 Gen2 ISO18000-6C
US Standard 16m (2W Handset)
The number of erasable 100000 times
Technical Parameters
Dimensions
| Materials | 70x20mm |
|---|---|
| Installation method | Surface Material Coated Paper Base material Glassin base paper |
| Packing specification | Adhesive paste |
| Working temperature | 2000 tablets/roll (customizable) |
| Working temperature | -40~+85℃ |
| Storage temperature | 23±3 ℃ |
| Storage humidity | 50±15% relative humidity |
| Storage life | More than 2 years (20°C ~ 30°C, 40 ~ 60% relative humidity) |
Electrical Performance
| Standard | EPC Global Class1 Gen2 ISO18000-6C |
|---|---|
| Frequency | Full band 860-960MHz |
| Chip | NXP U9/U8 |
| Memory | EPC code 128 bits; TID code 96 bits; User storage: 0 |
| Read Distance | 16.0 m (tested with 2W handset) Reading distance is related to actual use, environment and label |
| Number of erasable | 100,000 times |
| Data saving | 10 years |
