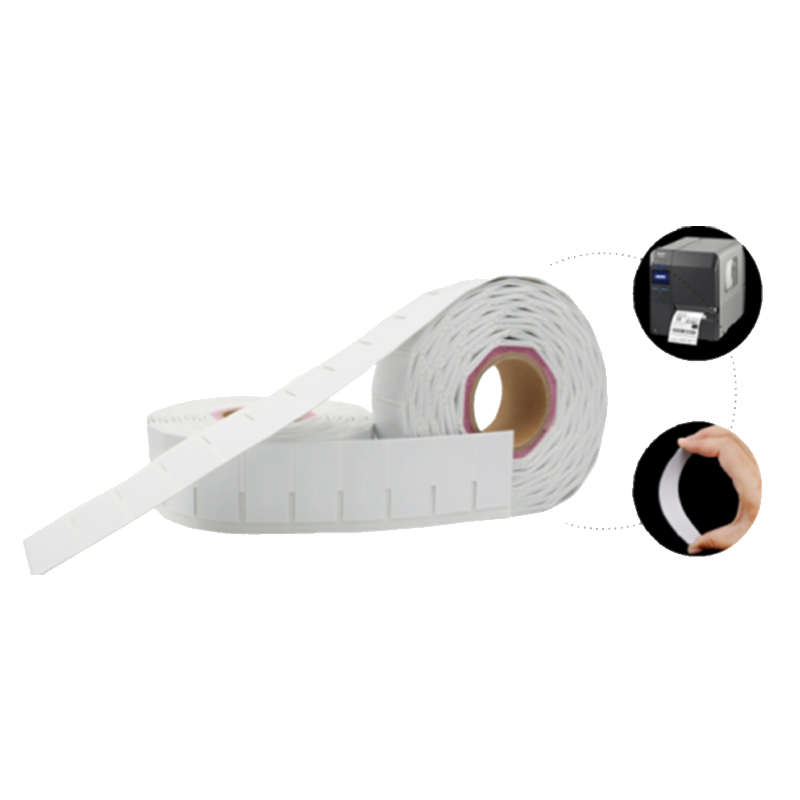

R7040E flexible printable anti-metal (flexible) electronic label

Ordinary anti-metal tags can not be attached to irregular or curved metal use, fast wireless flexible printable anti-metal electronic tag is a good technical solution to this problem. The label can be packaged as any kind of printed label, bar code or graphic label, and can be easily attached to curved items, such as gas cylinders, pipes, metal containers and fixed asset equipment. Widely used in product certification, asset tracking, logistics tracking, valuables anti-counterfeiting and medical asset management and other fields.
  • ※ physical parameters

    Size 70x40x1.25mm
    Material PET/aluminum foil/foam

  • ※ chip specifications

    Chip NXP U8/U9
    EPC 128 bits TID 96 bits

  • ※ RFID performance

    Standard EPC C1G2 (ISO18000-6C)
    7.5m metal surface, US standard reading distance (2W ERP)

  • ※ data acquisition

    10 years of data storage
    The number of erasable 100000 times

  • Technical Parameters

    Electrical Performance

    MaterialPET/aluminum foil/foam
    Dimensions70x40x1.25mm
    StandardEPC C1G2 (ISO18000-6C)
    Frequency902-928MHz (US Standard)
    ChipNXP U8/U9
    EPC128 bits
    TID96 bits
    American Standard Reading Distance (2W ERP)Metal surface 7.5 meters (related to reader power and application environment)
    Data storage10 years
    Number of erasable100000 times

    Other parameters

    Working temperature-20 ℃ ~ 85 ℃
    Storage temperature-30 ℃ ~ 100 ℃
    Storage humidity10%-95%
    Application surfacemetal surface
    Installation methodAdhesive paste
    Support PrinterSATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
    Customized contentLogo, bar code/two-dimensional code, serial number, code writing, antenna design, etc.
    Packing specificationRoll inner diameter: 76.2mm (3 inches) ,400 pieces/roll
    Product Application ScenariosMetal container tracking, equipment management, warehouse shelves, auto parts tracking, IT asset management, etc.
