R6227Y anti-metal transfer electronic label

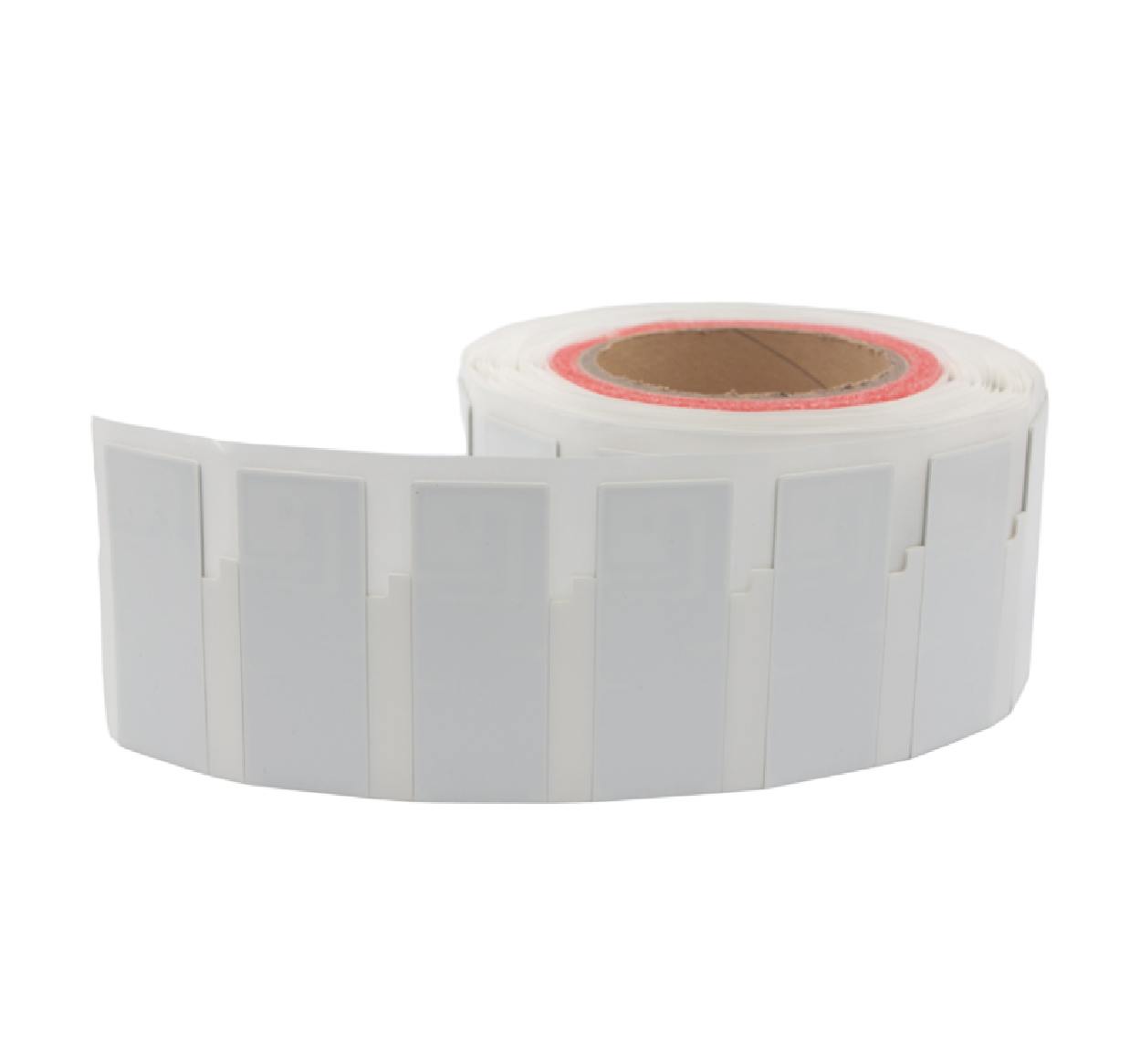

R6227Y anti-metal transfer electronic label is attached to irregular or curved metal for use. The label can be packaged as any kind of printed label, bar code or graphic label, and can be easily attached to curved articles, such as gas cylinders, pipes, metal containers and fixed asset equipment. Widely used in product certification, asset tracking, logistics tracking, valuables anti-counterfeiting and medical asset management and other fields.
  • ※ physical parameters

    Size 62*27*1.35mm
    Material can be printed white PET

  • ※ chip specifications

    Chip NXP /Impinj
    EPC 128 bits TID 96 bits User 32 bits

  • ※ RFID performance

    Standard EPC C1G2 (ISO18000-6C)
    7m metal surface, American standard reading distance (2W ERP)

  • ※ data acquisition

    10 years of data storage
    The number of erasable 100000 times

  • Technical Parameters

    Electrical Performance

    Dimensions62*27*1.35mm
    MaterialsPrintable white PET material
    RFID ProtocolEPC Class1 Gen2, ISO18000-6C
    Frequency902-928MHz
    ChipR6-P
    EPC128 bits
    TID96 bits
    User Area32 bits
    Number of writes100,000 times
    American Standard Reading Distance (2W ERP)7 meters on the surface (related to the power of the reader and the application environment)
    Data saving10 years
    Number of erasable100000 times

    Other parameters

    Working temperature-20 ℃ ~ 85 ℃
    Storage temperature-30 ℃ ~ 100 ℃
    Storage humidity10%-95%
    Application surfacemetal surface
    Installation methodAdhesive paste
    Compatible PrinterSATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
    Personalization OptionsLogo, bar code/two-dimensional code, serial number, code writing, antenna design, etc.
    Mode of supplyRoll inner diameter: 76.2mm (3 inches) ,500 pieces/roll
    Product Application ScenariosExpress station goods, Chinese herbal medicine picking, supermarket warehouse search, experimental sample search and other applications.
