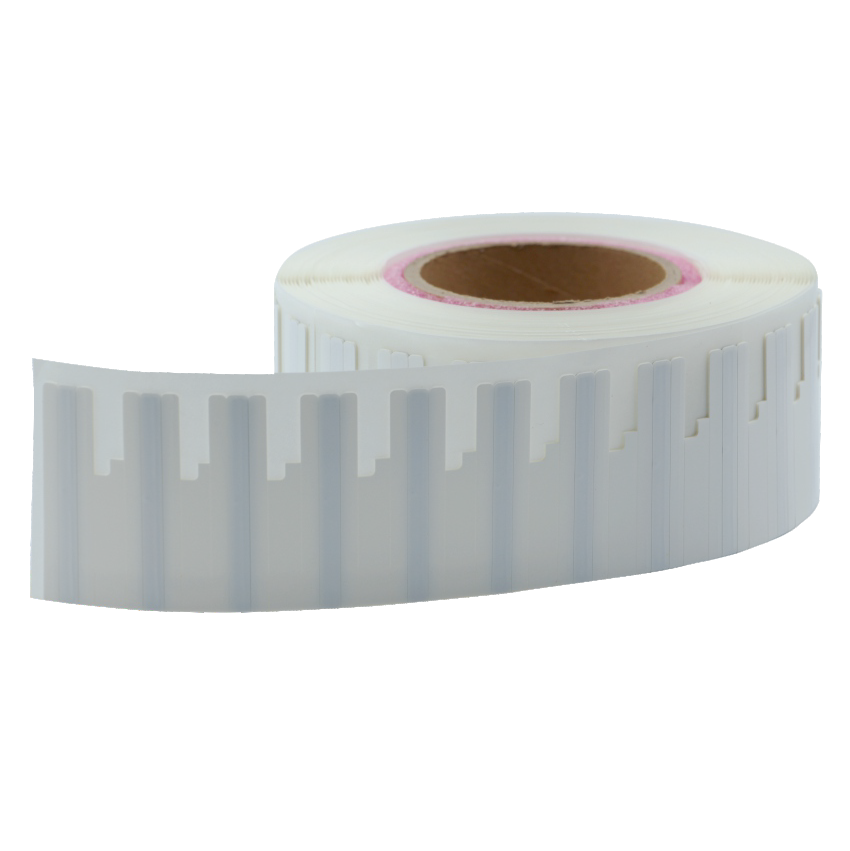

R6406 flexible anti-metal tag

Ordinary anti-metal tags can not be attached to irregular or curved metal, Speedingiot R4606 flexible printable anti-metal electronic tag is a good technical solution to this problem. The label can be packaged as any kind of printed label, bar code or graphic label, and can be easily attached to curved items, such as gas cylinders, pipes, metal containers and fixed asset equipment. Widely used in product certification, asset tracking, logistics tracking, valuables anti-counterfeiting and medical asset management and other fields.
  • ※ physical parameters

    Size 64 x 6.0 x 1.0mm
    Material PET/aluminum foil/foam

  • ※ chip specifications

    Chip NXP /Impinj
    EPC 128 bits

  • ※ RFID performance

    Standard EPC C1G2 (ISO18000-6C)
    2m metal surface, American standard reading distance (2W ERP)

  • ※ data acquisition

    10 years of data storage
    The number of erasable 100000 times

  • Technical Parameters

    Electrical Performance

    MaterialPET/aluminum foil/foam
    Dimensions64x6.0x1.0mm
    StandardEPC C1G2 (ISO18000-6C)
    ChipNXP Ucode 8
    EPC memory128 bits
    TID96 bits
    User Area Memory0 bits
    Waterproof gradeIP68 for 5 hours in 1 meter of water
    American Standard Reading Distance (2W ERP)Metal surface 4 meters (related to reader power and application environment)
    European standard reading distance (2W ERP)Metal surface 3.5 m
    Data storage10 years
    Number of erasable100000 times

    Other parameters

    Working temperature-20 ℃ ~ 85 ℃
    Storage temperature-30 ℃ ~ 100 ℃
    Storage humidity10%-95%
    Application surfacemetal surface
    Installation methodAdhesive paste
    Support PrinterSATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
    Customized contentLogo, bar code/two-dimensional code, serial number, code writing, antenna design, etc.
    Packing specificationRoll inner diameter: 76.2mm(3 inches), 500 pieces/roll
    Product Application ScenariosMetal container tracking, equipment management, warehouse shelves, auto parts tracking, IT asset management, etc.
