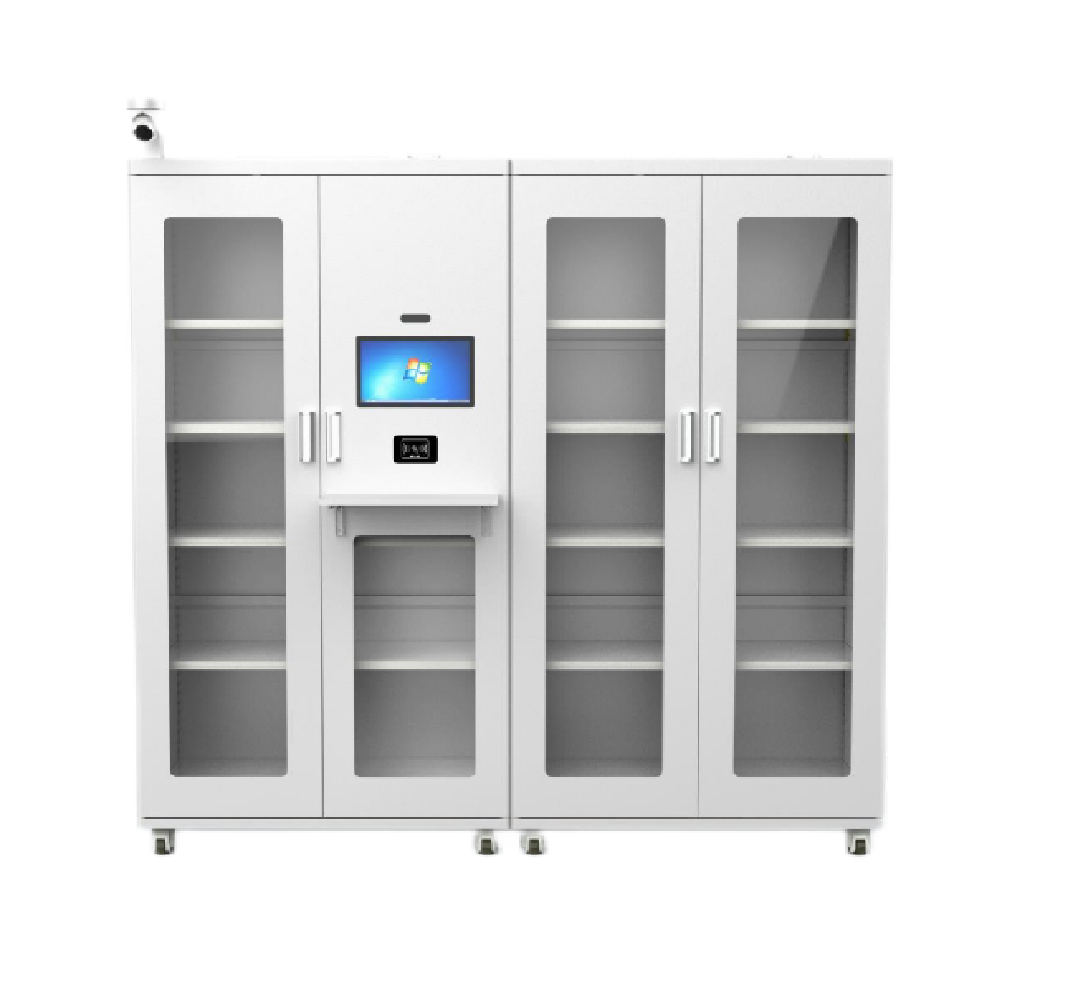

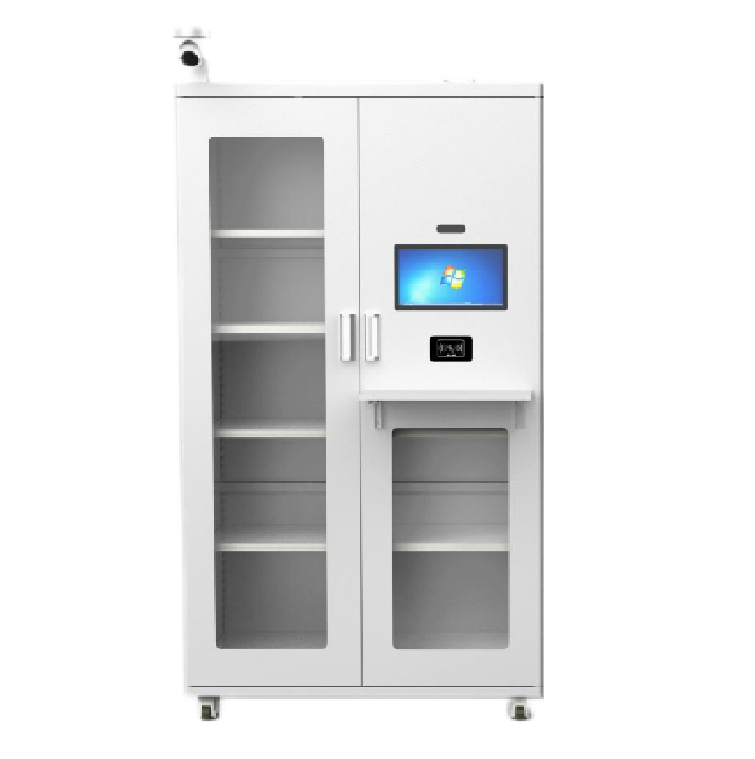

ET-S8 RFID Open Tool Cabinet
The ET-S8 intelligent tool cabinet developed by Swift Wireless can be used for lending and returning files in scenarios such as car repair shops and aviation tool management. UHF RFID radio frequency technology is used to realize rapid and batch identification with RFID tags. The smart cabinet conforms to the ISO18000-6C(EPC C1G2) protocol, has a simple and atmospheric appearance, reliable performance, supports multi-tag reading, and can use face recognition, card swiping, fingerprint recognition and other methods to open the door to access files, which is convenient for users to borrow and return. The equipment supports network port communication and can expand WiFi, 4G and other communication methods.
Size: 2000mm * 1100mm * 610mm (customizable)
Weight: about 200Kg
System: WIN10(8 128G)/Android 11(4 64G)
Display: 14 inches (1920*1080)
Based on Impinj E710 chip: Rate: ≥ 900 tags/sec (test data)
Face recognition; HF swipe; UHF swipe
Login, collection, return, ledger, inventory function, etc.
Sheet metal powder industrial white (color support customization)
Technical Parameters
physical parameters
| Overall size | 2000mm * 1100mm * 610mm (customizable) |
|---|---|
| Whole machine material | 3 sheet metal powder spraying |
| Cabinet door | Double-door, transparent cabinet door (items in the cabinet can be clearly seen) |
| Color | White/industrial gray (other colors can be customized) |
| Number of plies | 5 floors (expandable) |
| Weight | About 200Kg |
| Lighting system in cabinet | Lighting through the cabinet, automatically lights up when the door is opened, and automatically goes out when the door is closed. |
| Indicator lights and alarms | Three-color indicator lights and alarm devices can be added |
| Standard features | Binocular live face recognition, high frequency swipe card/ultra high frequency swipe card |
| Optional function | External Camera, Fingerprint, 4G,WIFI |
| Casters | Four casters or cups |
| Equipment power supply | AC input 100-240V/50-60Hz; |
Performance parameters
| Operating System | Android 11 / Windows10 |
|---|---|
| Processor | Quad-core RK3568 / I5 processor |
| Display | 14 inches (16:9) resolution 1920*1080 |
| Host Memory | 4G RAM 64G ROM (or select 8G RAM 128G ROM) |
| Communication mode | TCP/IP, WIFI,4G (optional) |
| Communication Protocol | TCP/IP, HTTP/HTTPS, MQTT/ SOCKET |
RFID parameters
| Operating frequency | China 920-925 MHz; USA 902-928 MHz; Europe 865-868 MHz |
|---|---|
| Protocol Standards | EPC C1 GEN2 / ISO18000-6C or GJB7377.1-2011 |
| RFID Engine | Design of E710 Chip Based on Impinj |
| Power output | 2W(33dBm,5 ~ 33dBm adjustable, step interval ± 1dBm) |
| Group Read Rate | 900 tags/sec (test condition is related to tag type, transmit power and application environment) |
| Antenna | 8dBic circular polarization, support antenna automatic detection |
Development Environment
| Development Language | C#, Java |
|---|---|
| Development Tools | Android, Windows |
Use of the environment
| Working temperature | -25 ℃ to 65 ℃ |
|---|---|
| Storage temperature | -40 ℃ to 85 ℃ |
| Working humidity | 5% to 95% (non-condensing) |
Annex
| Standard accessories | Power adapter, connecting feeder (2 m), certificate, etc. |
|---|---|
| Optional Accessories | Custom EVA Storage Pad |
