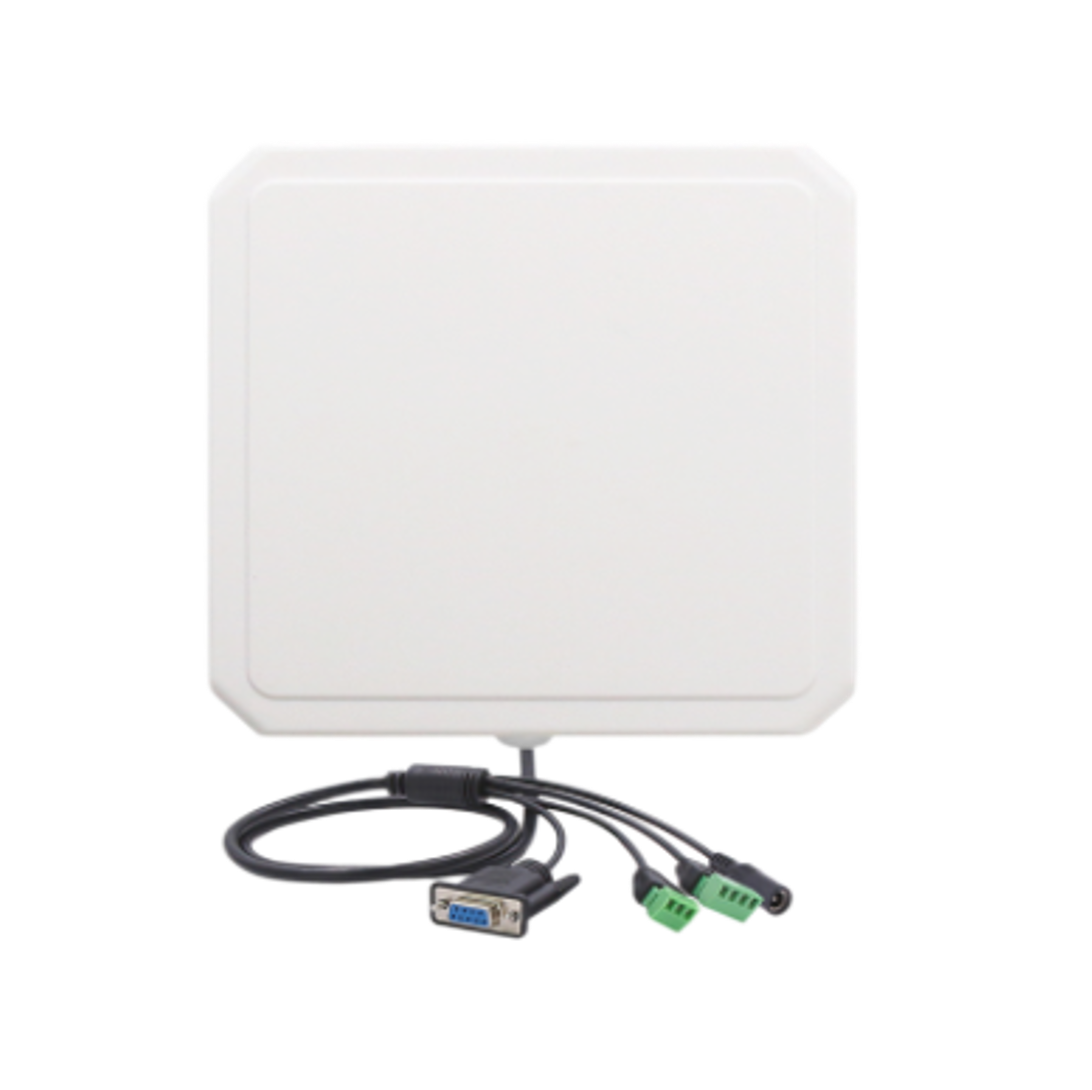

S-F700 UHF Integrated Reader
S-F700 is an integrated UHF RFID reader designed by Speedingiot. Based on the IMPINJ E710 chip design, it supports EPC Global C1 Gen2/ISO 18000-6C protocol, combined with proprietary efficient collision processing algorithm, to achieve fast read-write processing of electronic tags, easy to install and deploy, and can be widely used in various radio frequency identification systems.
Size 260x260x56mm
Weight 1950g
Chip Impinj E710 Design Module
System support Windows, Linux
Support RS-232, RJ45, GPIO
900+ Tags/s Read Rate
Technical Parameters
Basic parameters
| Dimensions | 260x260x56mm |
|---|---|
| 405x305x105mm | |
| Weight | 1950g |
| Material | Plastic + Aluminum Alloy |
| Color | White |
| Holding pole | φ30～φ50mm |
| Comm Interface | RS - 232, RJ45, GPIO |
| Input Voltage | DC 9V – 12V |
UHF RFID
| Engine | Impinj E710 chip |
|---|---|
| Frequency | China 920-925 MHz; USA 902-928 MHz; Europe 865-868 MHz(ETSI EN 302 208) |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Antenna parameters | Built-in near-field antenna |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable) |
| Polarization Mode | RHCP (Right-handed Circular Polarization) |
| Fastest Read Rate | Up to 900 tags/s |
| RSSI | Support |
| Indicator light | Power Indicator, Status Indicator |
Working environment
| Working temperature | -20 ℃ to 65 ℃ |
|---|---|
| Storage temperature | -40 ℃ to 85 ℃ |
| Working humidity | 0 ℃ to 90 ℃ |
Antenna
| Gain | 9dBi |
|---|---|
| Horizontal Angle | 60° |
| Vertical Angle | 55° |
| VSWR | ≤ 1.3 |
| Impedance | 50Ω |
| Lightning Protection | DC Ground |
