R5011 flexible anti-metal tag

Fast wireless R5011 anti-metal printable label is mainly designed for the identification of metal products and asset management. It can be recommend used in logistics management in manufacturing industry, management of containers, shelves, equipment, instruments, medical devices, fixed assets, etc., such as gas bottles, stainless steel kettles, metal boxes, automation parts, tools and other irregular surfaces, including solitary, round and square. For anti-theft management and traceability supervision of articles
  • ※ physical parameters

    Size 50x11x1.6mm
    Material PET/aluminum foil/foam

  • ※ chip specifications

    Chip NXP /Impinj
    EPC 128 bits TID 96 bits User 32 bits

  • ※ RFID performance

    Standard EPC C1G2 (ISO18000-6C)
    3m metal surface, American standard reading distance (2W ERP)

  • ※ data acquisition

    10 years of data storage
    The number of erasable 100000 times

  • Technical Parameters

    Electrical Performance

    MaterialPrintable white PET material
    Dimensions50x 11 x 1.6mm
    StandardEPC C1G2 (ISO18000-6C)
    Frequency902-928MHz
    ChipR6-P
    EPC128 bits
    TID96 bits
    User Area32 bits
    American Standard Reading Distance (2W ERP)Metal surface 3.0 meters (related to reader power and application environment)
    Data storage10 years
    Number of erasable100000 times

    Other parameters

    Working temperature-20 ℃ ~ 85 ℃
    Storage temperature-30 ℃ ~ 100 ℃
    Storage humidity10%-95%
    Application surfacemetal surface
    Installation methodAdhesive paste
    Support PrinterSATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
    Customized contentLogo, bar code/two-dimensional code, serial number, code writing, antenna design, etc.
    Packing specificationRoll inner diameter: 76.2mm (3 inches) ,500 pieces/roll
    Product Application ScenariosMetal container tracking, equipment management, warehouse shelves, auto parts tracking, IT asset management, etc.

    相关说明

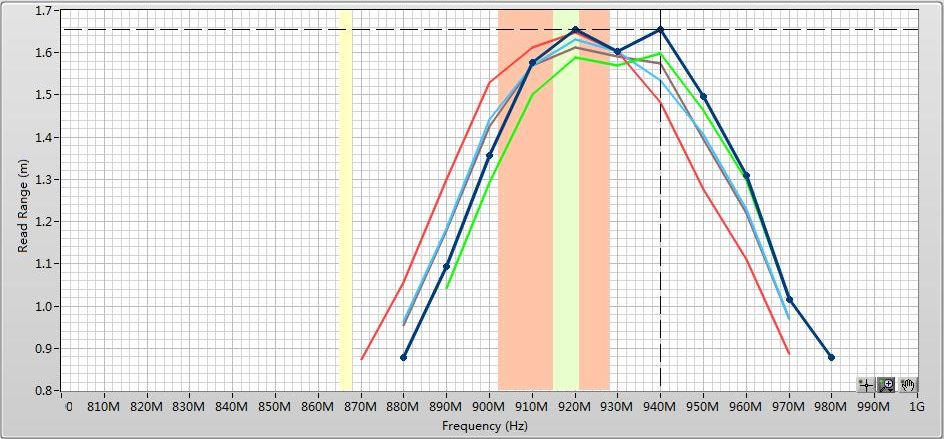

    产品性能图示

    1743579107066
