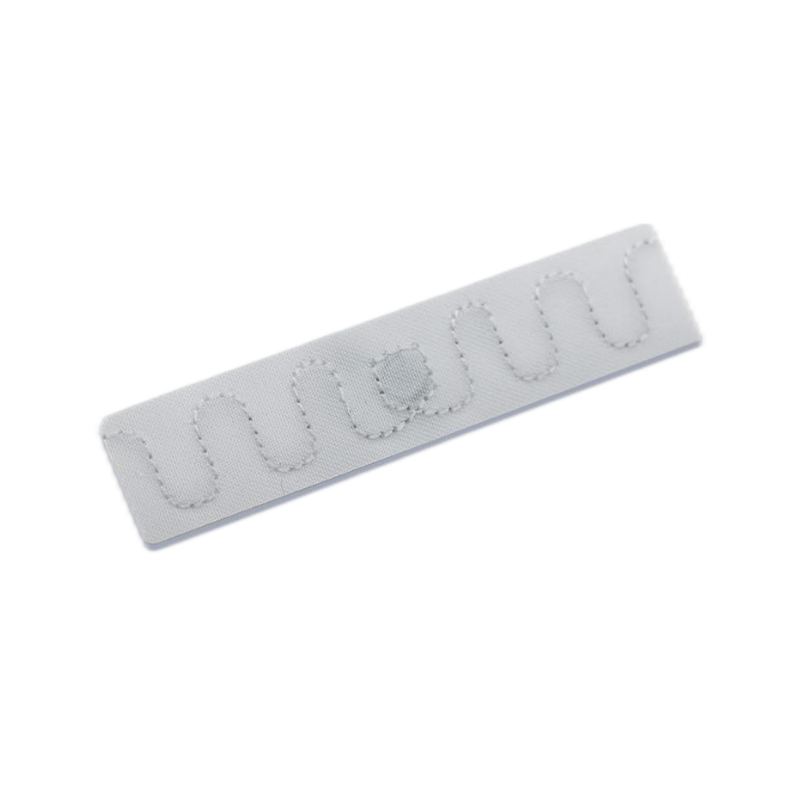

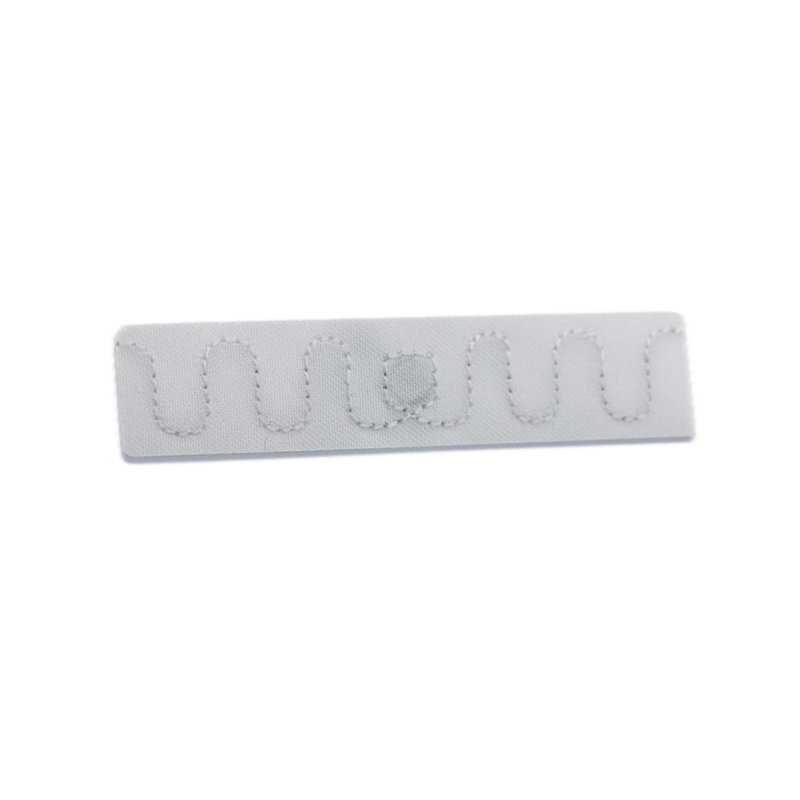

Woven mark laundry label TX7015
Speedingiot TX7015 ,based on flexible antenna and woven,is a UHF laundry tag,special for linen laundry management,The tag can withstand more than 200 industrial washing cycles,with thin thickness,long reading distance,pressure and high temperature resistance.The laundry tag has a unique global identification code,by sewing a tag on each piece of linen.In the entire use of linen,users can do batch reading and check the linen pretty quickly by RFlD reader, automatically record the use of linen,washing times.lt will make the handover of washing tasks simple and transparent,and greatly improves the efficiency of inventory inspection by the UHF laundry tag.Meanwhile,users can predict the service life of the current linen and make purhcase plans through the data collection of washing times.
Size 70 x 15 x 1.4mm
Material Polyester
Chip NXP Ucode 9xe
EPC 128 bits TID 96 bits User N/A
Standard EPC C1G2 (ISO18000-6C)
Reading distance (fixed Reader) US:>14.0m(46 ft); EU:>14.0m(46 ft)
Read Distance (Handheld Reader) US:>13.5m(44 ft); EU:>9.3 m(31 ft)
Data storage>20 years
The number of erasable 100000 times
Installation method :Sewn in
Technical Parameters
RFID performance parameters
| Material | Polyester |
|---|---|
| Dimensions | 70 x 15 x 1.4mm |
| Weight | 0.4g |
| Standard | EPC C1G2 (ISO18000-6C) |
| Frequency | 860-960MHz (Universal) |
| Chip | NXP Ucode 9xe |
| EPC memory | 128 bits |
| TID | 96 bits |
| USER | N/A |
| Reading distance (Fixed Reader) | US:>14.0m(46 ft); EU:>14.0m(46 ft) |
| Read Distance (Handheld Reader) | US:>13.5m(44 ft); EU:>9.3 m(31 ft) |
| Data storage | 20 years |
| Number of erasable | 100,000 times |
Other parameters
| Working temperature | -20~85 ℃ |
|---|---|
| Storage temperature | -20~80 ℃ |
| Operating humidity | 8%-95% RH |
| Installation method | Sewn inside the hem or pouch |
| Warranty | 200 washing cycles or 3 years，which comes first |
| Washing Method | Laundry，Dry cleaning |
| Water Extraction Pressure | 60 bars |
| Chemical resistance | Detergent,Softener,Bleach(Oxygen/Chlorine),Alkali |
| Washing temperature | 90°C (194°F)/15 minutes |
| Washing temperature | 180°C (356°F)/30 minutes |
| Washing temperature | 185°C (365°F)/10 seconds |
| Sterilization Temperature | 135℃ (275°F)/20 minutes |
| Customized content | Logo, bar code/two-dimensional code, serial number, code writing, antenna design, etc. |
| Application | Industrial washing management, cloth rental management, standard clothing management and washing management, police/medical/military cloth management and washing management, personnel management, etc. |
