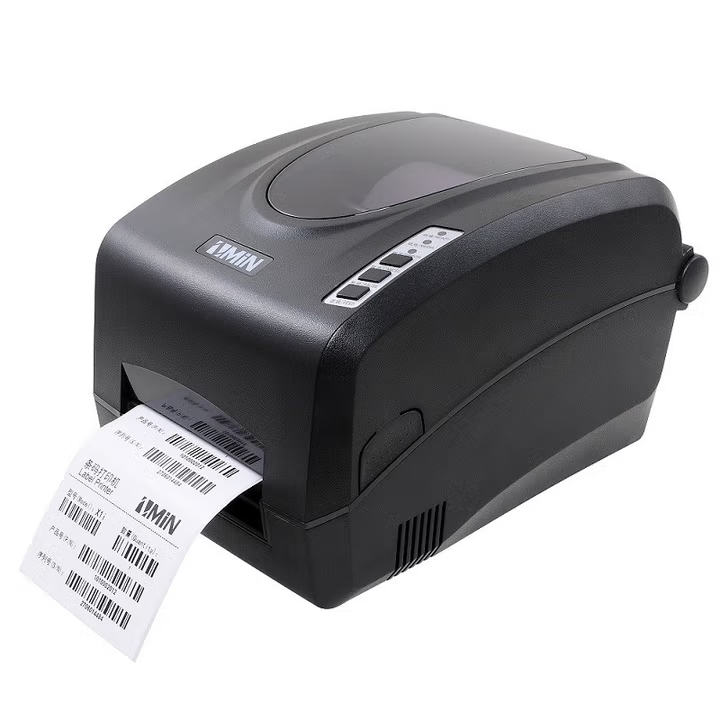

CA9800 conventional RFID desktop printer
CA9800 series RFID printer is a high-performance RFID desktop printer, printing labels of different shapes and styles. Its all-round performance allows you to choose more freely or even waste the consumables you are using! The reasonable layout of the inner compartment is convenient for installation and replacement of carbon ribbons and labels. It can accommodate up to 300 meters of carbon ribbons and 5-inch label paper rolls, reducing the frequency of consumable replacement. 300DPI up to 6 inches/second print speed to achieve fast and smooth printing, save working time. With excellent performance at the same time, to meet the needs of users in various industries.
Dimensions width 208 x length 310 x height 195 mm
Weight 2.62kg
Screen 4.3 inch touch screen, communication WiFi BT interface USB 2.0, serial port/network port
Protocols EPC Gen2 V2 and ISO18000- 63 support RFID paper out-of-paper, seam mark, notch, black mark and other detection
The printing method supports thermal transfer, thermal
Print speed 6 ips (inches per second) resolution 300 dpi
Print width 105.6mm, length 2000mm, resolution 300 dpi
Label size width 118mm thickness <1.5mm
Label roll core outer diameter 127mm, inner diameter 25.4mm
The length of the carbon tape is 300M/width 110mm/winding core 25.4mm.
Technical Parameters
Basic parameters
| Fuselage Dimensions | Width 208 x Length 310 x Height 195 mm |
|---|---|
| Weight | 2.62 KGS |
| Print Method | Thermal/thermal transfer |
| Resolution | 300 DPI(11.8 points/mm) |
| Maximum print speed | 6 IPS(152.4 mm/s) |
| Maximum Print Width | 4.15″ (105.6 mm) |
| Maximum Print Length | 78.7 ″(2000mm) |
| Memory | 8 MB Flash ROM, 16 MB SDRAM |
| Label Roll Size | Width: maximum 4.6 ″(118mm), minimum 0.8 ″(20mm) Outer diameter: max. 5 ″(127mm) Inner diameter: min. 1 ″(25.4mm) |
| Label thickness | 0.06 ~ 1.5mm (0.002 "~ 0.06") including backing thickness to support flexible anti-metal tag |
| Ribbon size | Outer diameter (maximum):2.75 ″(70mm) Inner diameter: 1 ″(25.4mm) or 0.5 ″(12.7mm) Maximum width: 4.3 ″(110mm) Maximum length: 300 m |
| Paper detection mode | Reflective and transmissive dual sensors |
Related parameters
| RFID function | Integrated high-performance UHF RFID reader/encoder that supports UHF EPC Gen 2/ISO 18000-6C compatible tags. 1. Support the working mode of printing while reading and writing data, printing only or reading and writing data only; 2. Support reading tag TID, EPC, TID EPC data; 3. Support USB and network two-way communication, real-time feedback printer status. |
|---|---|
| Barcode | Code 39,Code 93,Code 128,Codabar,EAN-8/13/128,Interleave 2 of 5,UCC-128,UPC A/E 2 and 5 add-on, etc; Data Matrix,MaxiCode,PDF417,QR and other two-dimensional barcode |
| Interface | RS-232 serial port, USB interface, RJ45 network port (optional) |
| Input power | 24 VDC, 2.0 A |
| Working environment | Temperature: 0 ° C ~ 40 ° C (32 ° F ~ +104 ° F) Relative humidity: 5% ~ 85% without condensation |
| Storage Environment | Temperature:-40 ° C to 60 ° C (-40 ° F to +140 ° F) Relative humidity: 5% ~ 85% without condensation |
| Development Environment | Mature secondary development package (SDK) software interface, support for multi-language calls, including. Net,HTML, Jscript, JAVA, etc. |
| Technical Support | Printing machine and self-developed software and secondary development kit (SDK), need to support both windows and domestic operating systems. |
| Drive-free use | Under windows and domestic operating systems, it supports installation-free drivers, plug and play, and can be used after replacing computers without setting up. |
| Certification | 3C |
| Optional Accessories | Wired network card, automatic paper stripper, etc. |
