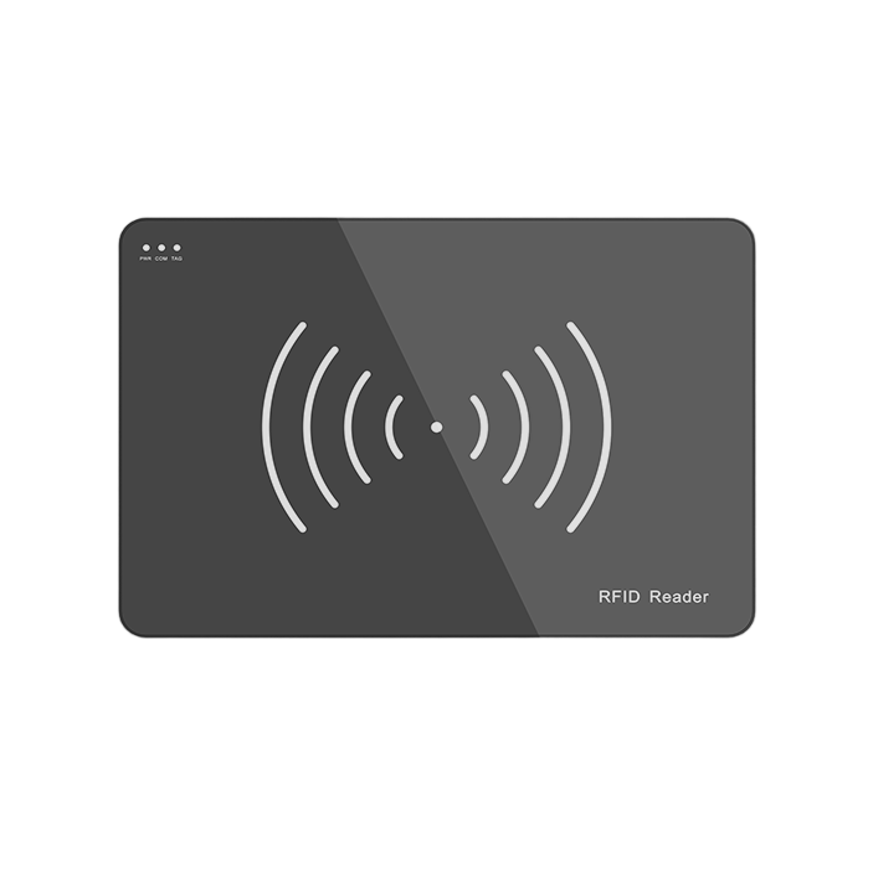

S-D03 Desktop RFID Reader

S-D03 is a desktop UHF reader/writer launched by our company, designed specifically for close range RFID data acquisition. It is developed based on the IMPINJ E710 chip and supports the EPC Global C1 Gen2/ISO 18000-6C protocol, combined with a specialized collision algorithm to achieve fast tag reading and writing. The HID-USB interface does not require driver installation, making it easy to install and deploy. It can transfer data through USB and supports applications on Windows/Android/iOS systems. Suitable for various scenarios such as identity recognition, warehousing and logistics, retail stores, anti-counterfeiting production processes, etc.
  • ※ Physical parameters

    Size 320*220*19mm
    Weight 665g

  • ※ Basic performance

    Chip Impinj E710 Design Module
    System Windows/Android/iOS

  • ※ Communication interface

    USB Type-C Data Communication via USB

  • ※ RFID performance

    Self-Developed Module Based on Impinj E510/E310

  • Technical Parameters

    Basic Parameters

    DimensionsSize 320*220*19mm
    Weight 665g
    MaterialMetal bottom shell+tempered glass panel
    ColorWhite
    Communication USB Type-C
    Power supplyUSB Power supply
    AntennaBuilt in near-field antenna

    UHF performance parameters

    EngineImpinj E710
    Operating frequency865-868 / 920-925 / 902-928 MHz
    Protocol StandardsEPC C1 GEN2 / ISO18000-6C
    Output Power1dBm-30dBm, 1dBm (Stepper)
    RFID Eeading Speed Multi-tag recognition performance> 200 tags
    Tag cache330 @ longest 128bits EPC
    or 100 @ longest 496 bits EPC
    RSSI intensity detection Support
    LEDRed (PWR): Power indicator light
    Green (COM): indicator light in operation
    Blue (TAG): Read the indicator light

    Working environment

    Working temperature-20 ℃ to 70 ℃
    Storage temperature-40 ℃ to 85 ℃
    Working humidity0 ℃ to 90 ℃
    Storage humidity0 ℃ to 65 ℃

    Annex

    Packing list Reader host *1, Type-C USB cable *1

    Power supply

    Supply voltageUSB power supply/5V (external 5V power supply can be connected through the expansion interface)
