R6025 UHF On-metal Label

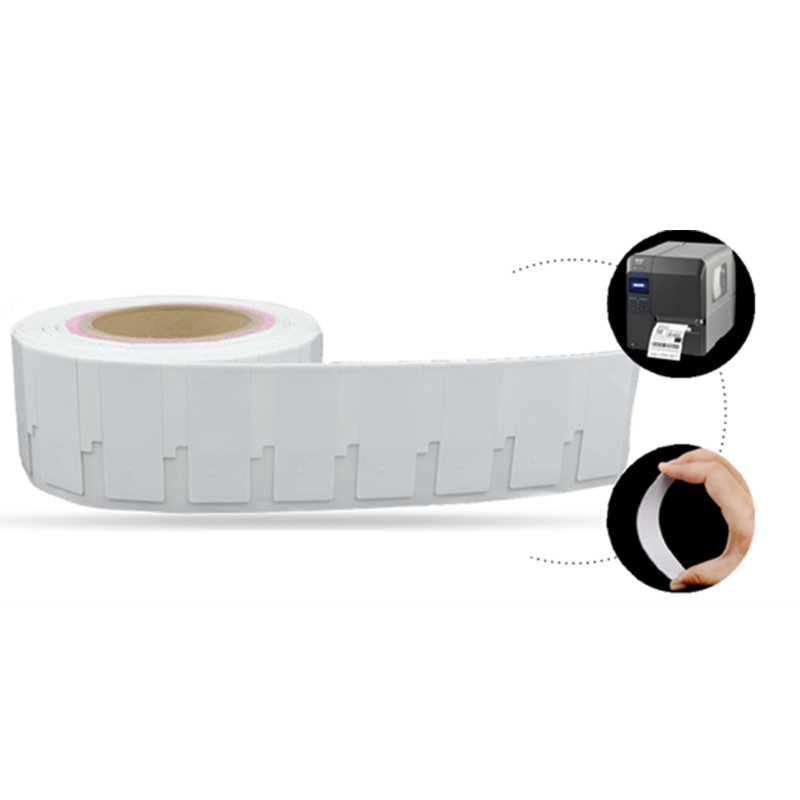

This flexible printable anti-metal tag is compatible with EPC C1G2 and ISO 18000-6C standards. Its flexible design allows installation on irregular flat or curved surfaces, supporting personalized customization services such as printing, encoding, and marking. It is widely used in metal containers, fixed asset management, IT asset management, warehouse management, and other fields.
Size 60x25x1mm
The material is composed of PET, aluminum foil, and foam.
Chip NXP Ucode 8
EPC 128 bits TID 96 bits
Standard EPC C1G2 (ISO18000-6C)
US Standard Read Range (2W ERP): 5m on metal, 2m on non-metal
EU Standard Read Range (2W ERP): 5m on metal, 2m on non-metal
10 years of data storage
The number of erasable 100000 times
Technical Parameters
Electrical Performance
| Material | PET / Aluminum Foil / Foam |
|---|---|
| Dimensions | 60x25x1mm |
| Standard | EPC C1G2 (ISO18000-6C) |
| Frequency | 902-928MHz |
| Chip | NXP Ucode 8 |
| EPC memory | 128 bits |
| TID | 96 bits |
| Read Range (2W ERP) | US Standard Read Range (2W ERP): 5m on metal, 2m on non-metal EU Standard Read Range (2W ERP): 5m on metal, 2m on non-metal |
| Data storage | 10 years |
| Number of erasable | 100000 times |
Other parameters
| Working temperature | -40~ +85℃ |
|---|---|
| Storage temperature | -40~+120℃ |
| Application surface | metal surface |
| Installation method | Adhesive paste |
| Support Printer | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Customized content | Logo, bar code/two-dimensional code, serial number, code writing, antenna design, etc. |
| Packing specification | Roll inner diameter: 76.2mm (3 inches) ,500 pieces/roll |
| Product Application Scenarios | Metal container tracking, equipment management, warehouse shelves, auto parts tracking, IT asset management, etc. |
