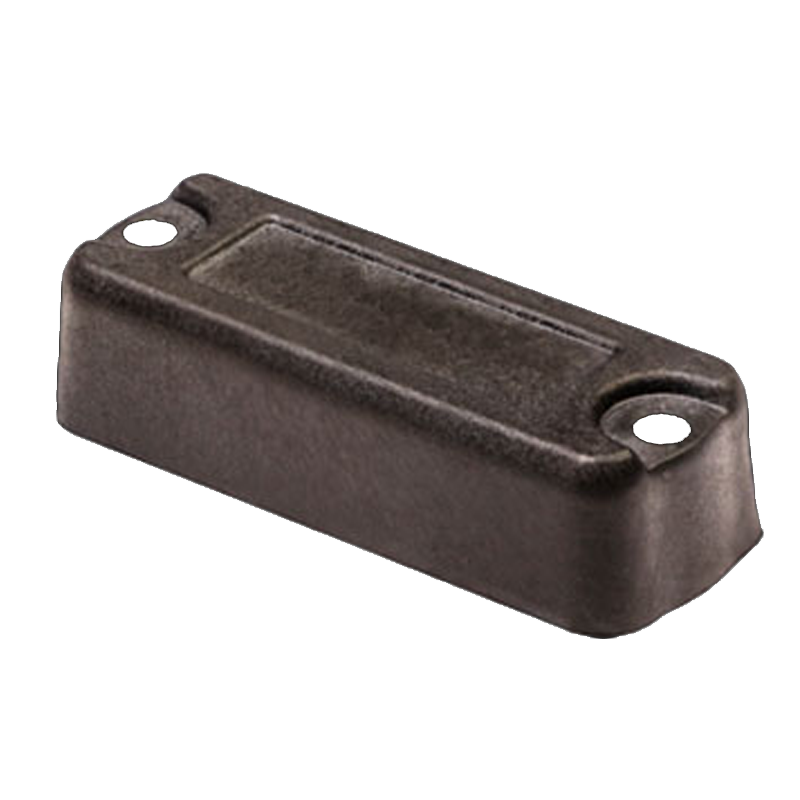

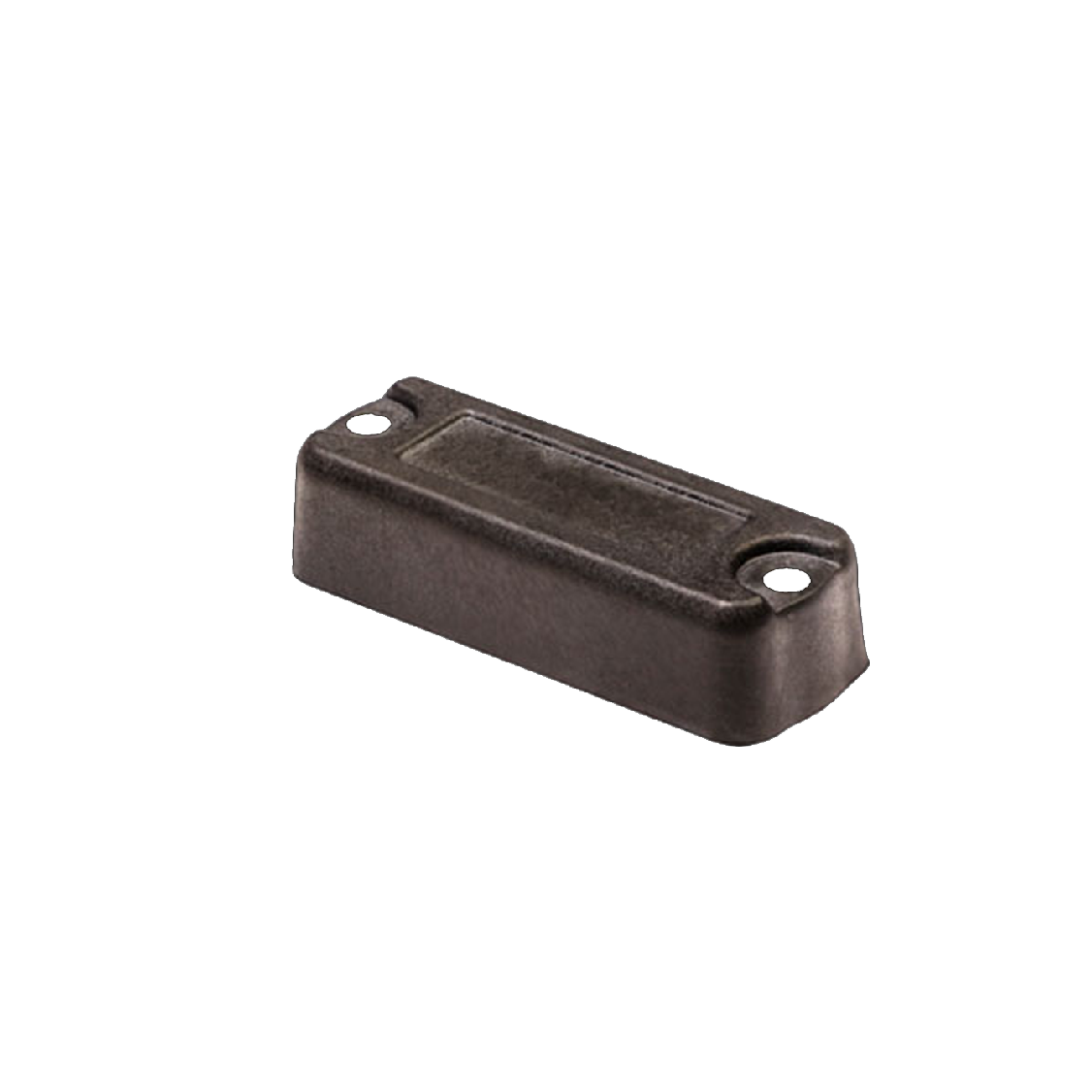

Anti-metal high temperature electronic tag G4015

Quick wireless G4015 is an ultra-high frequency and high temperature resistant rfid tag with built-in NXP UCODE8 chip. the shell is packaged with high-quality and high temperature resistant PEEK material. it can be used for 100 hours at 300 С high temperature and 260 С high temperature without affecting the performance of the electronic tag. the tag has a size of 40x 15mm, a thickness of 10mm and a weight of 6g. it supports UHF EPC Global Class1 Gen2, ISO 18000-6C protocol, can be applied to metal and non-metal surfaces, when the G4015 label is attached to the metal surface, the reading performance is better, up to 6 meters away. UHF RFID tag Devil4015 has the advantages of small size, stable performance and convenient installation. Widely used in paint processing line, electroplating electrophoresis management, mold management, heat processing parts management, equipment inspection, asset management, building materials management, warehouse management, power equipment and auto parts management and so on.
  • ※ physical parameters

    Dimension Φ 30mm X 3mm Middle hole φ5mm
    Material PA

  • ※ chip specifications

    Chip NXP U CODE 8
    EPC 128 bits TID 96 bits User 0 bits

  • ※ RFID performance

    Standard EPC C1G2 (ISO18000-6C)
    American standard reading distance (2W ERP)3.0m, metal surface
    American standard reading distance (4W ERP)6.0m, metal surface

  • ※ other parameters

    Data storage> 10 years
    The number of erasable 100000 times
    Installation method screw

  • Technical Parameters

    RFID performance parameters

    MaterialPEEK
    Dimensions40x 15mm, (hole: diameter 2.5mm x 2)
    Weight6.0g
    ColorBlack
    StandardEPC Class1 Gen2, ISO18000-6C
    Frequency(US Standard) 902-928MHz, (European Standard) 865-868MHz
    ChipNXP UCODE 8
    StorageEPC 128bits , USER 0bits, TID 96bits
    Number of writes100,000 times
    Data saving50 years
    Application surfacemetal surface
    Waterproof gradeIP65
    Read Pitch (4 Watt Fixed Machine)6.0 m, (US Standard) 902-928MHz, metal surface, 1.7 m non-metal surface
    6.0 m, (European Standard) 865-868MHz, metal surface, 1.7 m non-metal surface
    Read Pitch:(2 Watt Handset)3.0 m, (US Standard) 902-928MHz, metal surface, 1.2 m non-metal surface
    3.0 m, (European Standard) 865-868MHz, metal surface, 1.2 m non-metal surface

    Working temperature

    Storage temperature-40~150 ℃
    Operating humidity10%-95%
    Installation methodScrew
    Customized contentSerial number, code writing, antenna design, etc.
    Product Application ScenariosPaint processing line, electroplating electrophoresis management, mold management, heat processing parts management, equipment inspection, asset management, building materials management, warehouse management, power equipment and auto parts management, etc.
