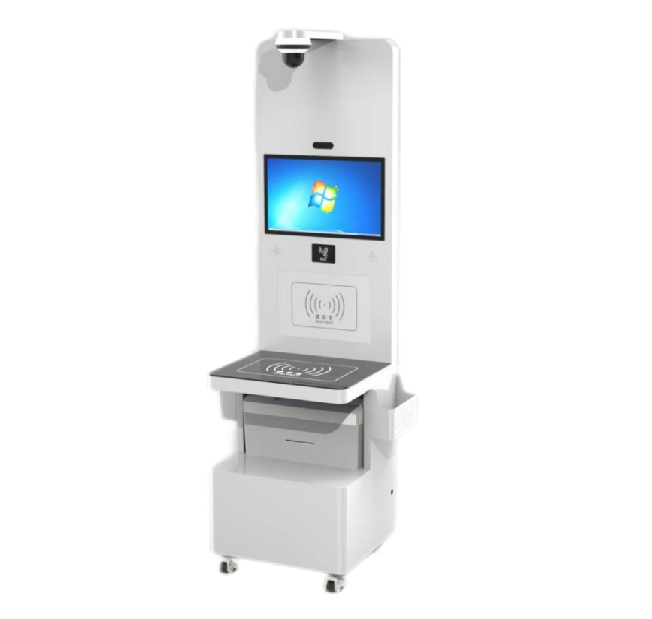

EM-10V RFID Vertical Inventory Table
EM10V RFID vertical workstation is a Speedingiot company developed a support Android/windows operating system, the use of RFID identification technology products, by the UHF RFID reader and a number of antenna units composed of intelligent terminal equipment. The appearance is fashionable and practical, and it is equipped with a high-definition recognition camera to capture and record every borrowing and return operation. Unique high-gain narrow-beam antenna technology ensures multi-tag reading performance while minimizing misreading range. In batch tools, materials, books, archives and other borrowing and collection application scenarios, tag reading performance is excellent and efficiency is extremely high.
Size: 500(L)* 800(W)* 2000(H)mm (customizable)
Weight: about 70Kg
CPU: Android 3568 or windows(I5,4G 64G)
RFID:Impinj E710
Support 4G,WIFI, Bluetooth, TCP IP USB, etc
UHF,HF, 1D/2D barcode scanning
Hard disk video recorder, binocular live face login, bill printing, etc.
Power adapter, mouse, keyboard, etc
Technical Parameters
physical parameters
| Dimensions | Standard: 500(L)* 800(W)* 2000(H)mm; Optional: customized version height can be reduced; |
|---|---|
| Material | White sheet metal spray plastic |
| RFID identification area | 550 (width) * 500 (depth) mm; optional: can be customized; |
| Countertop protection | PC to prevent scratches |
| Weight | About 70KG |
| Casters | Equipped with casters and foot cups |
Performance parameters
| Industrial control CPU | Android 3568 or windows(I5,4G 64G) |
|---|---|
| System | Android 11 or windows10 (optional) |
| Memory | 4G 16g (optional 32G/64G/128G) |
| Display | Screen: 21 inches (16:9), best resolution: 1920*1080P |
| Screen brightness | ≥ 250cd/m2 Contrast ≥ 1000:1 |
| Screen surface | The screen adopts chemical tempering, Mohs 6 explosion-proof glass |
| Touch screen | Projective capacitive technology (capacitive touch screen) Standard 10-point touch, can achieve zoom in and out of the picture and other multi-touch function |
| Speaker | With speaker, speaker power: 4Ω3W |
| Network Card | Integrated 10/100/1000M adaptive network card, wireless network card 802.11a/B/g/n |
| Input power | 110-240V AC 50/60Hz |
Camera (optional)
| Specifications | DS-2CD3325F(D)-I(S) 2,000,001/2.7 |
|---|---|
| Name | CMOS ICR day and night hemispherical network camera |
| Maximum Image Size | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps (1920 x 1080;1280 x 960;1280 x 720) |
| Sensor Type | 1/2.7"" Progressive Scan CMOS |
| Adjust angle | Horizontal: 0 ° ~ 360 °, Vertical: 0 ° ~ 75 °, Rotation: 0 ° ~ 360 ° |
| hard disk video recorder | Brand: Hikvision Capacity: 1T |
UHF RFID (standard)
| Communication Protocol | ISO18000-6C/EPC Class1 Gen2 |
|---|---|
| Frequency | 920MHz ~ 925MHz/902MHz ~ 928MHz/865MHz ~ 868MHz |
| Output power | 0 ~ 33dbm adjustable |
| Antenna | Near field, can expand the side |
2D Scan Engine (optional)
| Barcode Support | Support one-dimensional/two-dimensional barcode scanning |
|---|---|
| Scanning accuracy | ≥ 5mil |
| reading depth of field | 0mm-110mm |
| Reading rate | 15 times/second |
| Reading direction | 360 degrees. |
HF RFID (standard)
| Frequency | 13.56MHz |
|---|---|
| Read Distance | Within 50mm |
| Communication Protocol | ISO14443A/14443B/15693 |
Environmental parameters
| Working temperature | 0 ℃-50 ℃ |
|---|---|
| Storage temperature | 0 ℃-60 ℃ |
| Working humidity | 0% - 90% |
| Storage humidity | 0% - 65% |
Equipment accessories
| Standard fittings | Each workbench with keyboard * 1, mouse * 1 |
|---|
