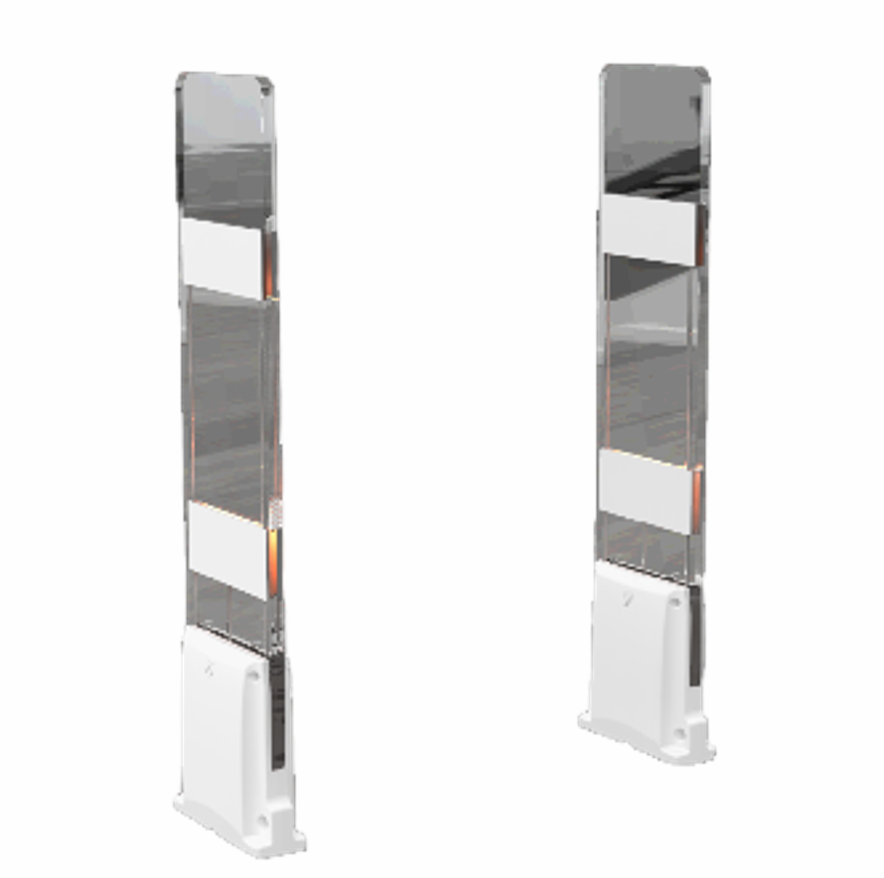

E07A Fashion UHF Access Control
S-E07A is a small and medium-sized series RFID intelligent channel door with high performance of Android system with algorithm newly developed by Speedingiot. Based on impinj E710 engine design, it fully supports electronic tags conforming to EPCglobal C1 Gen 2 ISO 18000-6C standard and can be widely used in various radio frequency identification systems such as storage, clothing, retail, archival books, etc.
Size 1322mm*395mm*76mm
Weight 32Kg
Support TCP/IP
EPC C1 GEN2 / ISO18000-6C or GJB7377.1-2011
Developed based on Impinj E710 chip; rate 900 label/sec
Technical Parameters
physical parameters
| Overall size | 1322mm*395mm*76mm |
|---|---|
| Weight of whole machine | 32Kg |
| Shell | Sheet metal material |
| Color | White |
| Infrared (light eye) | 2 pairs |
| radar monitoring | 2 pairs |
| Installation method | Expansion bolt, base (optional) |
| Switch button | Support |
| Equipment power supply | AC input 100-240V/50-60Hz;DC output 12V/6A |
Basic parameters
| Communication mode | RS-232, TCP/IP, WIFI,4G (optional) |
|---|---|
| Communication Protocol | TCP/IP, HTTP/HTTPS |
| Operating frequency | China 920-925 MHz; USA 902-928 MHz; Europe 865-868 MHz |
| Protocol Standards | EPC C1 GEN2 / ISO18000-6C or GJB7377.1-2011 |
| RFID Engine | Design of E710 Chip Based on Impinj |
| Power output | 2W(33dBm,5 ~ 33dBm adjustable, step interval ± 1dBm) |
| Group Read Rate | 900 tags/sec (test condition is related to tag type, transmit power and application environment) |
| Working mode | Online mode/Offline mode |
| GPIO | 6 inputs; 4 relay outputs |
| Antenna | Narrow beam antenna, support antenna automatic detection |
Development Environment
| Development Language | C#, Java |
|---|---|
| Development Tools | Android, Windows, Web |
Use of the environment
| Working temperature | -25 ℃ to 65 ℃ |
|---|---|
| Storage temperature | -40 ℃ to 85 ℃ |
| Working humidity | 5% to 95% (non-condensing) |
Annex
| Standard accessories | Power adapter, connecting feeder (2 m), certificate, etc. |
|---|---|
| Optional Accessories | Base |
