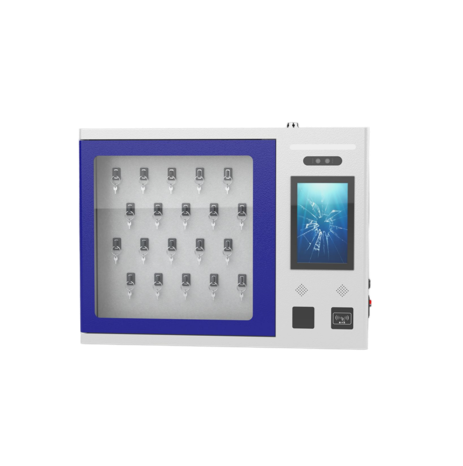

S-Y02 RFID Tool Management Warranty Desk

Gong S-Y02 is a high-performance UHF RFID librarian reading and writing equipment of Shenzhen Express Wireless. Based on IMPINJ's new generation E710 UHF RF reader chip design, it has high sensitivity, wide reading range, low power consumption and strong performance. It fully supports electronic tags conforming to EPC Global C1 Gen2/ISO 18000-6C standard. Unique high-gain near-field antenna technology, excellent multi-tag reading performance, peak tag inquiry speed up to 900 sheets/second, support intensive reading, large-capacity tag reading and writing, received signal strength detection (RSSI), and support optional card identification, bar code and bill printing functions. Functional diversity, complete configuration. Rugged and durable. It can be widely used in logistics, access control, clothing, retail, warehousing, anti-counterfeiting and intelligent manufacturing and other radio frequency identification systems.
  • ※ physical parameters

    Size: 553*400*501mm
    Weight: about 8Kg

  • ※ industrial control parameters

    System: WIN10(8 128G)/Android 11(4 64G)
    Display: 21.5 inches (1920*1080)

  • ※ RFID parameters

    Based on Impinj E710 chip: Rate: ≥ 900 tags/sec

  • ※ expansion function

    Face recognition, bill printing, bar code collection, card login, etc.

  • ※ communication parameters

    USB 2.0 Type-C,OTG,TCP IP

  • ※ material color

    Cold rolled steel powder aluminum profile (cold white)

  • Technical Parameters

    Basic parameters

    Overall size553*400*501mm (length * width * height)
    Weight of whole machineAbout 8KG
    Display21.5 inches (16:9), maximum resolution: 1920*1080P
    Touch screenProjective capacitive touch screen with multi-touch support,
    MaterialCold rolled steel powder aluminum profile
    Communication InterfaceUSB 2.0 Type-C,OTG
    AudioBuilt-in audio
    Input power110-240V AC 50/60Hz

    Performance parameters

    CPUAndroid: Ruixin Micro RK3568 2.0GHz Quad-Core
    Operating SystemAndroid 11 /Windows10
    Network CardIntegrated 10/100/1000M adaptive network card
    MemoryAndroid: LPDDR4 4GB 64GB/optional 8 128 version
    WIN: 4GB 64GB/optional 8 128 version

    RFID UHF operating frequency (860-960 MHz customized as needed)

    Operating frequencyChina 920-925 MHz; USA 902-928 MHz; Europe 865-868 MHz(ETSI EN 302 208)
    RFID EngineDevelopment based on Impinj E710 chip
    Protocol StandardsEPC C1 GEN2 / ISO18000-6C
    Antenna parametersBuilt-in near-field antenna
    PowerOutput power software adjustable, step interval ± 1dB, maximum 33dBm
    Group Read RateUp to 700 sheets per second

    Expand function

    Card LoginNFC
    face recognitionBinocular Live Face Recognition Camera
    Bar code identificationOne-dimensional barcode/two-dimensional code
    Bill PrintingThermal Receipt Printing

    Working environment

    Working temperature0 ℃ to 50 ℃
    Storage temperature0 ℃ to 60 ℃
    Working humidity0 ℃ to 90 ℃
    Storage humidity0 ℃ to 65 ℃

    Annex

    Standard accessoriesPower adapter, physical emergency key, etc.
