S62 built-in RFID handheld terminal

S62 is a Speedingiot high-expansion data acquisition handheld terminal developed based on Android system, with eight nuclear CPU,4G communication, 5.5-inch HD large screen, resolution as high as 1280*720, visible under strong light. 2.4G & 5G dual-frequency Wi-Fi; It can realize one-dimensional/two-dimensional barcode scanning, UHF RFID reading and writing, NFC, photographing, fingerprint and ID card identification multifunctional equipment to ensure the efficiency and stability of mobile data collection for enterprise users. The equipment structure design has strong industrial durability and is widely used in commercial retail, logistics and warehousing, asset management, electric power, government & public utilities, banks, order fwill, admission ticket inspection and other industry users.
  • ※ Physical parameters

    Size 170 x 80 x 28mm
    Screen 5.5 inch IPS screen, resolution 720*1440

  • ※ Basic performance

    System Android 10/13; optional Hongmeng system
    Memory 2GB 16GB optional 4G 64G

  • ※ Wireless communication

    WWAN 4G WiFi Dual Band Bluetooth 4.2

  • ※ Data acquisition

    Barcode scanning RFID UHF reading distance 3 meters; NFC reading distance 2-5cm

  • ※ Biometrics

    Optional ID card and fingerprint identification verification function

  • ※ Extended functionality

    Optional low frequency 134.2/125k module and 2.4G module customization

    • Technical Parameters

    Basic parameters

    Overall size170 × 80 × 28mm
    Weight of whole machine430 g
    Display5.5 inch IPS HD screen, resolution 720*1440
    Touch screenCorning Gorilla Glass, multi-touch, support gloves or wet hand operation
    Battery capacityRechargeable lithium polymer battery 5200 mAh
    Standby time> 400 hours
    Working hours> 12 hours (depending on usage and network environment)
    Charge time <6 hours (using standard power adapter and cable)
    Expansion Card Slot2 SIM card slots, 2 PSAM card slots, 1 TF card slot
    Communication InterfaceUSB 2.0 Type-C,OTG
    NotificationsSound, LED indicator, vibrator
    SensorLight sensor, distance sensor
    Audio1 microphone; 1 speaker; earpiece
    Keyboard2 scan keys, 1 power key, 1 volume key,
    Front 4 Custom Entity Buttons

    Performance parameters

    CPUCortex-A53 2.0 GHz eight-core
    Operating SystemAndroid 11 / 13
    Memory2 GB 16 GB(Android 11)
    4 GB 64 GB(Android 13)
    Expand memoryExpandable MicroSD (TF) card to 256 GB
    Wireless Communication WWAN4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20
    3G:WCDMA( 850/1900/2100MHz);
    2G:GSM/GPRS/Edge
    WIFI FrequencySupport IEEE802.11 a/B/g/n/ac protocol (2.4G/5.8G dual band)
    Positioning SystemGPS and Beidou dual navigation system, error range ± 5m
    BluetoothBluetooth 4.2

    Development Environment

    SDKSoftware Development Kit
    Development LanguageJava
    Development ToolsEclipse / Android Studio

    Use of the environment

    Working temperature-20 ℃ to 50 ℃
    Storage temperature-40 ℃ to 70 ℃
    Humidity5% to 95% (non-condensing)
    Protection levelHost IP65

    Data acquisition

    CameraFront 5 million pixel camera; rear 13 million pixel camera, support auto focus, flash

    RFID UHF (optional)

    Operating frequencyChina 920-925 MHz; USA 902-928 MHz; Europe 865-868 MHz
    RFID EngineBased on M100 chip development
    Protocol StandardsEPC C1 GEN2 / ISO18000-6C;
    Antenna parametersCircularly polarized antenna (2dBi)
    Power1W(30dBm, support 5dBm ~ 30dBm adjustment)
    card reading distance1-3m (Alian H3 anti-metal tag, size 130x 42mm)
    Test DescriptionThe actual use of the card reading distance is related to the environment and the label.

    NFC (optional)

    Operating frequency13.56 MHz
    Protocol StandardsISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
    Label StandardsM1 card (S50, S70), CPU card, NFC tag, etc
    Read and write distance2-5cm

    Barcode acquisition (optional)

    Scan EngineHoneywell HS7/N6703 New World CM60/N1/Other
    Type of supportUPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Code: USPostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc.

    Fingerprint module (optional)

    SensorTCSI biometric fingerprint/FBI fingerprint authentication
    Sensor TypeCapacitive Area Sensor
    Resolution508 DPI
    PerformanceFRR<0.008%,FAR<0.005%
    Storage capacity1000

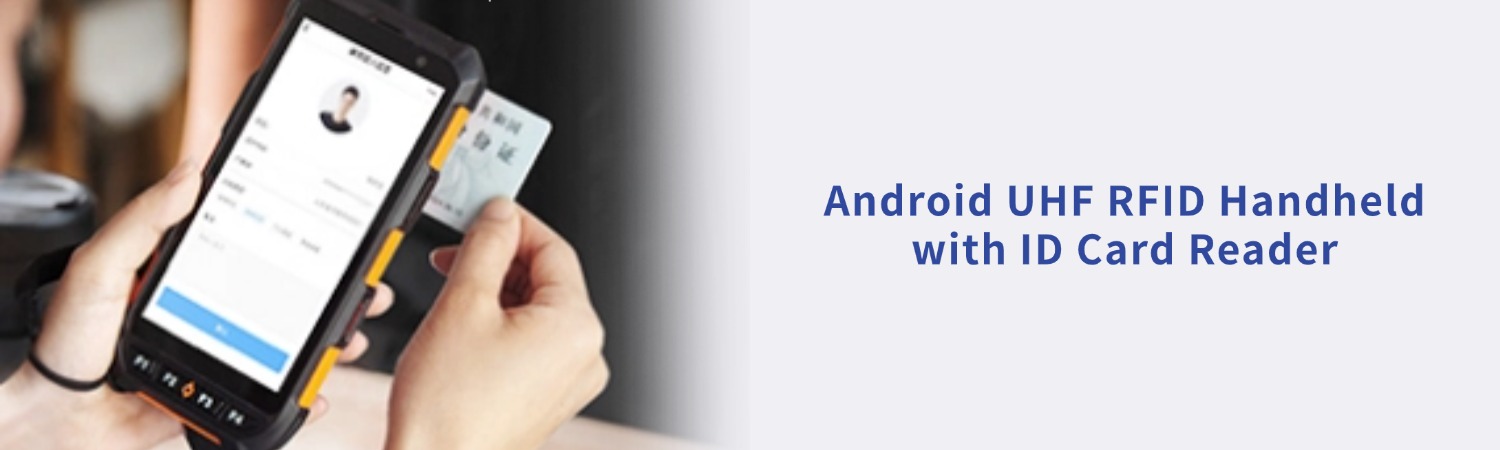

    ID card module (optional, only for use in China)

    Built-in moduleMinistry of Public Security Second-generation Certificate Security Encryption Module
    Related FunctionsCollect and identify ID card information, support face recognition function
