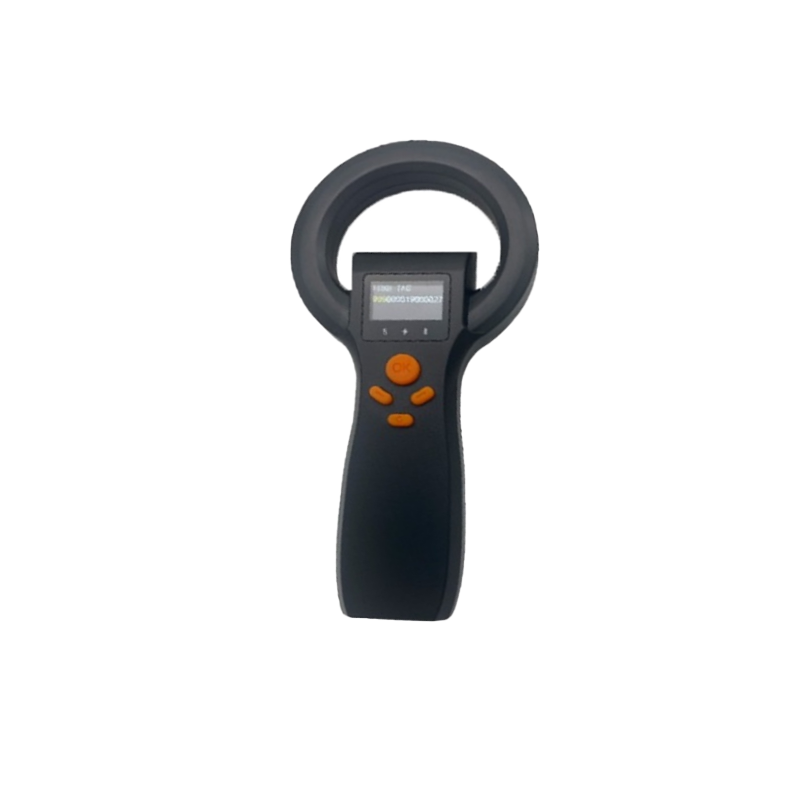

U4 RFID LF Handheld Reader
U4 is a handheld low-frequency tag reader‑writer that adopts wireless identification technology. It supports FDX‑B, FDX‑A, and HDX format electronic tags compliant with ISO 11784/11785 international standards. The device is equipped with Bluetooth wireless communication for real-time connection with mobile phones, allowing full control via a mobile APP. Users can also communicate data with a computer via a USB data cable. Featuring stable performance and simple operation, this product is suitable for animal husbandry, pet electronic ID verification, and other related fields.
Size 190*90*22mm
Display: 1.14-inch color screen, resolution 240*130
Low-frequency chip tags in FDX-B, FDX-A, HDX formats compliant with ISO 11784/11785
USB transmission, Bluetooth 4.0 wireless communicationr
Up to 16,000 records (time + tag code)
Technical Parameters
Basic parameters
| Dimensions | 190*90*22mm |
|---|---|
| Weight | 95g |
| Communication mode | USB transmission, Bluetooth 4.0 wireless communication |
| Language | English / Chinese |
| Display | 1.14-inch color screen, resolution 240*130 |
| Signal indication | Buzzer |
| Power supply | Single Li-Polymer battery (1050mAh), battery size 65*20mm |
| Power Consumption | Working current 500mA (Max) |
| Storage Capacity | Up to 16,000 records (time + tag code) |
| Length | Default 65cm (more than 1 m can be adjusted according to customer requirements) |
RF Performance
| Tag Type | Low-frequency chip tags in FDX-B, FDX-A, HDX |
|---|---|
| Read Time | <1s |
Operating Temperature
