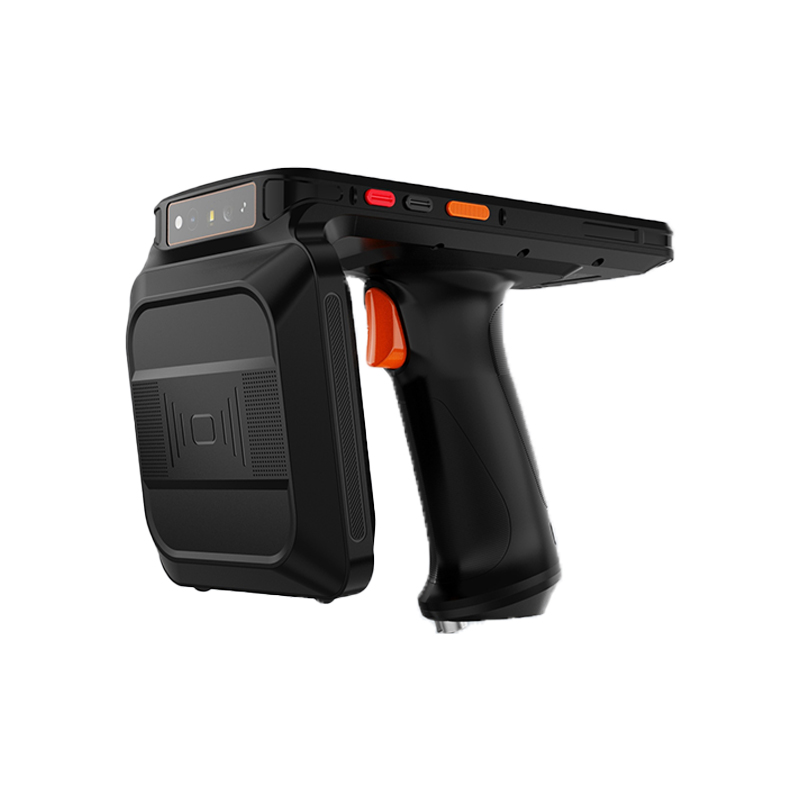

S30 Long-Range RFID Reader
S30 Long-Range RFID Handheld Terminal with 2.3GHz octa-core processor, slim and lightweight yet powerful. Equipped with high-precision scanning engine for fast and accurate code reading. IP67 industrial rugged design for harsh environments. Superior RFID performance: barrier-free indoor reading, up to 20m outdoor reading range, 300 tags/sec batch reading, highly efficient and stable inventory.
Size 164×77.6×16mm
Screen 6 inches, resolution: HD 720*1440 (Standard)；FHD 1080*2160 (Optional)
CPU eight core 2.3GHz
Operating System Android 15
WWAN 2.4G/5G/ WIFI Dual Band BT5.1
Barcode recognition RFID and NFC high frequency reading(Optional)
Reading distance > 20 meters
Supports reading and writing of CPU cards, used with PSAM.
Technical Parameters
Basic parameters
| Overall size | 164×77.6×16mm |
|---|---|
| Weight of whole machine | 420g |
| Display | 6 inch IPS HD screen, resolution: HD 720*1440 (Standard)；FHD 1080*2160 (Optional) |
| Touch screen | Corning Gorilla Glass, multi-touch, support gloves or wet hand operation |
| Battery capacity | Rechargeable lithium polymer battery 7200 mAh Standby time> 400 hours Working hours> 12 hours (depending on usage and network environment) Charge time <6 hours (using standard power adapter and cable) |
| Expansion Card Slot | 2 SIM card slots, 2 PSAM card slots 1 TF card slot |
| Communication Interface | USB 2.0 Type-C,OTG |
| Notifications | Sound, LED indicator, vibrator |
| Sensor | Light sensor, distance sensor |
| Audio | 1 microphone; 1 speaker; earpiece |
| Keyboard | 2 scan keys, 1 power key, 1 volume key, Front 4 Custom Entity Buttons |
Performance parameters
| CPU | Cortex-A53 2.0 GHz eight-core |
|---|---|
| Operating System | Android 15 |
| Memory | 4 GB + 64 GB |
| Expand memory | Expandable MicroSD (TF) card to 256 GB |
| Wireless Communication WWAN | 4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/Edge |
| WIFI Frequency | Support IEEE802.11 a/B/g/n/ac protocol (2.4G/5.8G dual band) |
| Positioning System | GPS and Beidou dual navigation system, error range ± 5m |
| Bluetooth | Bluetooth 5.1 |
Development Environment
| SDK | Software Development Kit |
|---|---|
| Development Language | Java |
| Development Tools | Eclipse / Android Studio |
Data acquisition
| Camera | Front 5 million pixel camera Rear 13 million pixel camera support auto focus, flash |
|---|
RFID UHF (optional)
| Operating frequency | China 920-925 MHz USA 902-928 MHz Europe 865-868 MHz |
|---|---|
| RFID Engine | Based on Impinj or domestic chip development |
| Protocol Standards | EPC C1 GEN2 / ISO18000-6C |
| Antenna parameters | Circularly polarized antenna (4dBi) |
| Power | 2W(33dBm, support 5dBm ~ 33dBm adjustment) |
| card reading distance | 1-20m |
| Test Description | The actual use of card reading distance and group reading rate is related to the environment and label. |
NFC (optional)
| Operating frequency | 13.56 MHz |
|---|---|
| Protocol Standards | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Label Standards | M1 card (S50, S70), CPU card, NFC tag, etc |
| Read and write distance | 2-5cm |
Barcode scanning (optional)
| Scan Engine | Honeywell HS7/N6703 New World CM60/N1/Other |
|---|---|
| Type of support | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: USPostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc |
Use of the environment
| Working temperature | -20 ℃ to 50 ℃ |
|---|---|
| Storage temperature | -40 ℃ to 70 ℃ |
| Ambient humidity | 5% to 95% (non-condensing) |
| Protection level | Host IP65 |
Annex
| Standard accessories | Battery, adapter, data cable, lanyard |
|---|---|
| Optional Accessories | Charging seat charging (optional with network port) |
